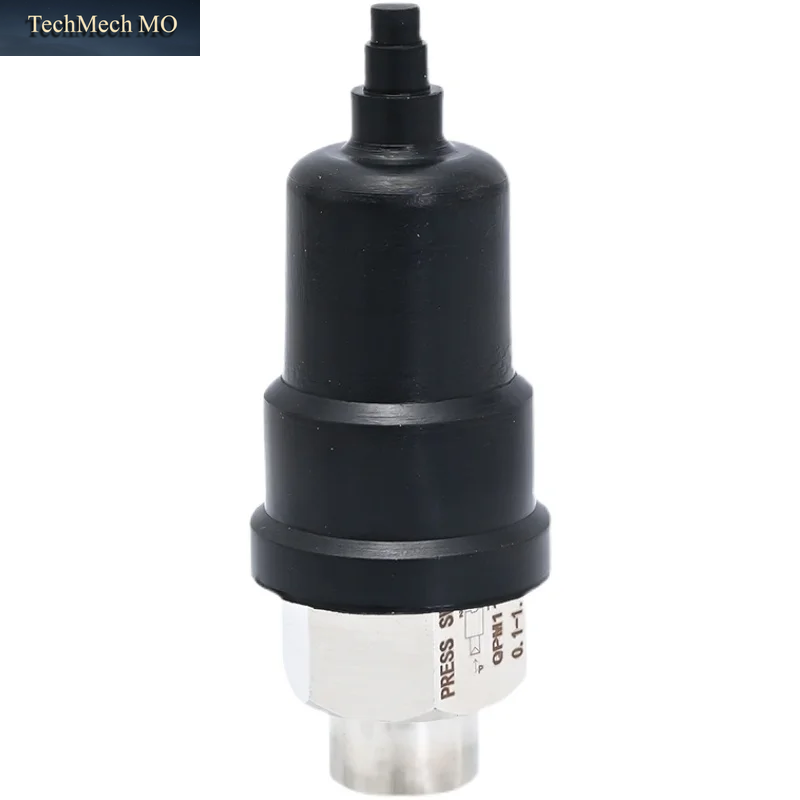

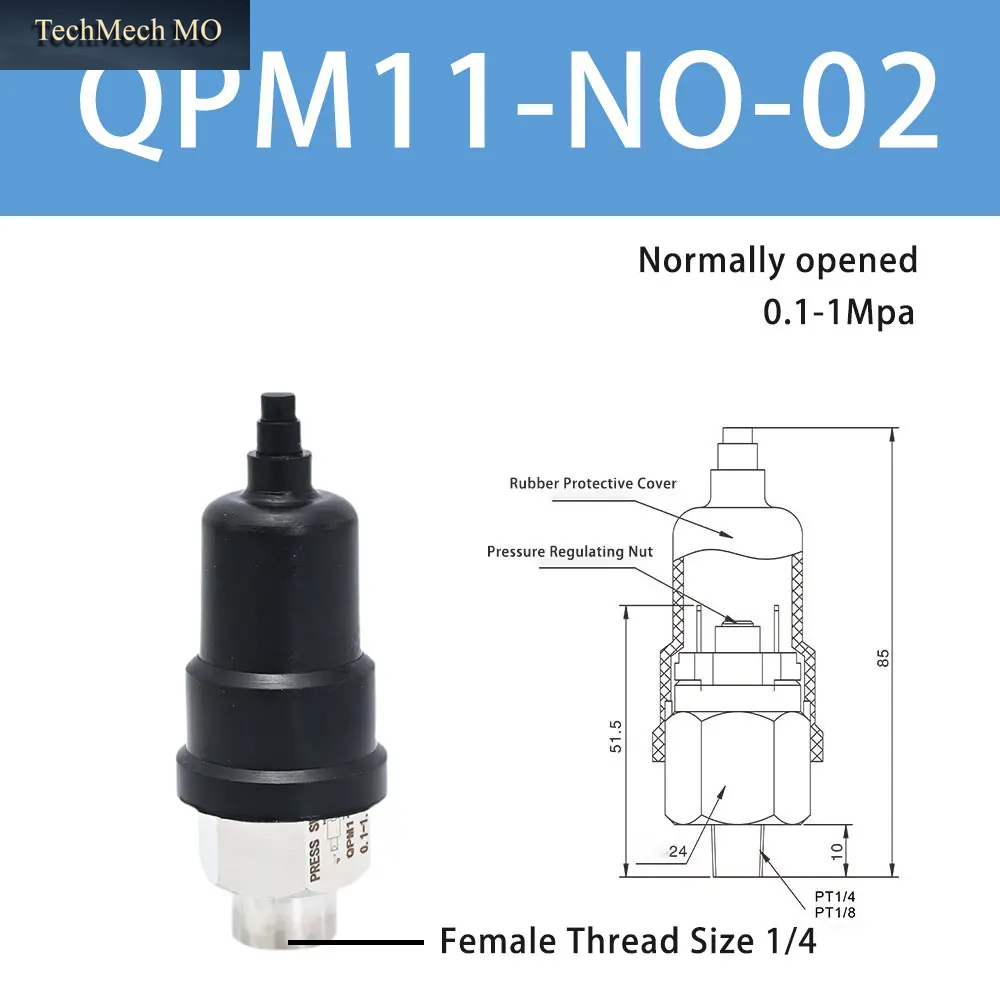

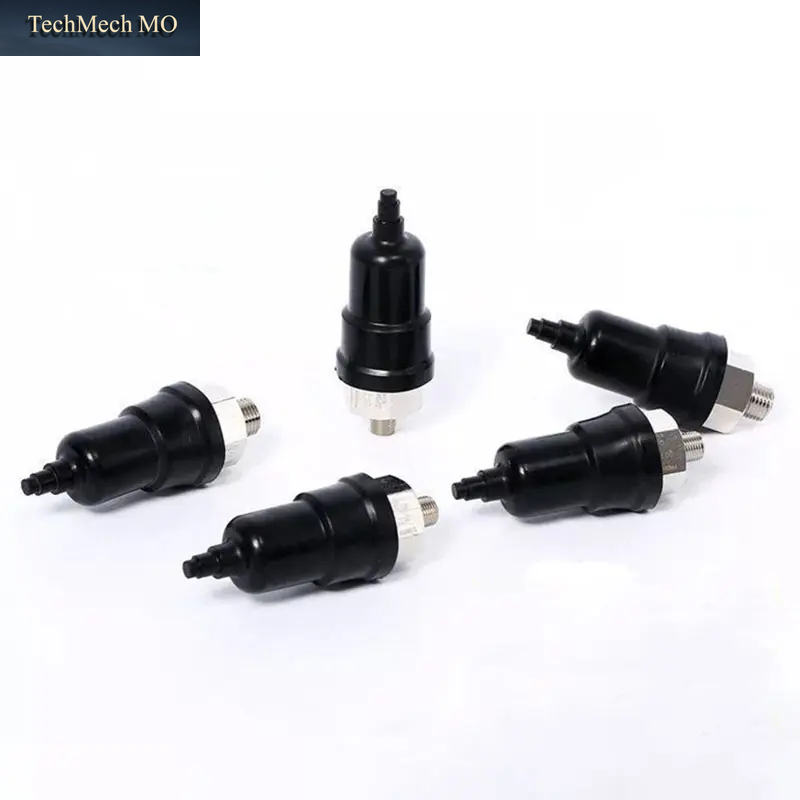

QPM11 Einstellbarer Pneumatischer Luftdruckschalter Kompressor Hydraulische Membran Automatischer Steuerung QPM NC Normalerweise Geschlossen Geöffnet
Price range: 34,99 € through 43,99 €
NOTICE:
1.The more you order,contact me,the more cheaper price will be.
2.Package include:1PCS QPM11.
|
Medium |
Air |
|
Temperature |
-5~60℃ |
|
Pressure |
0~1.0MPa,0.1~5MPa,0~10MPa |
|
Action mode |
Adjustable Pressure Type |
|
installation and connection mode |
Male Thread |
|
Valve Operation Type |

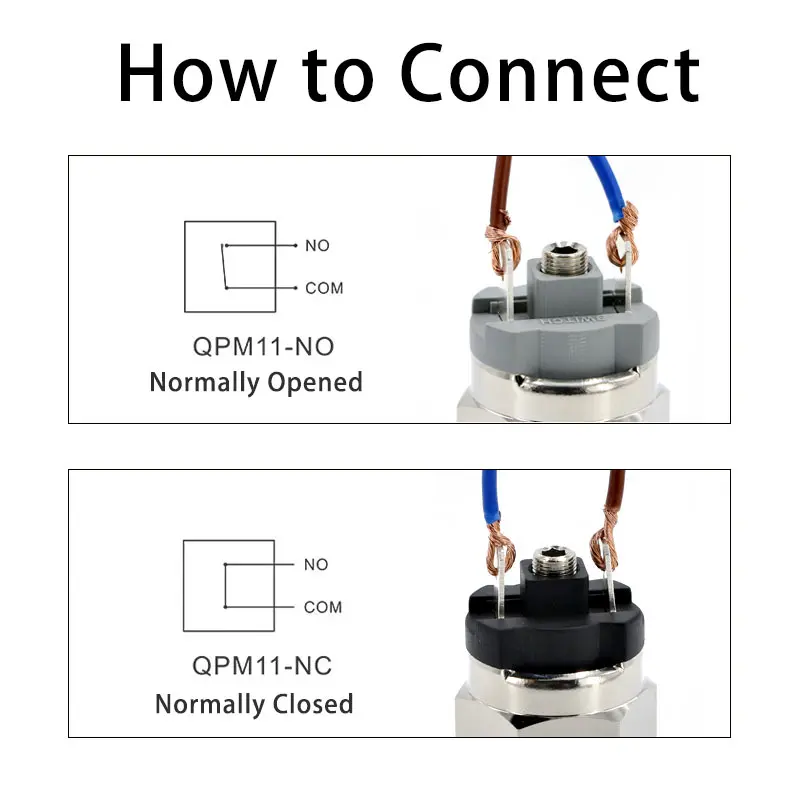

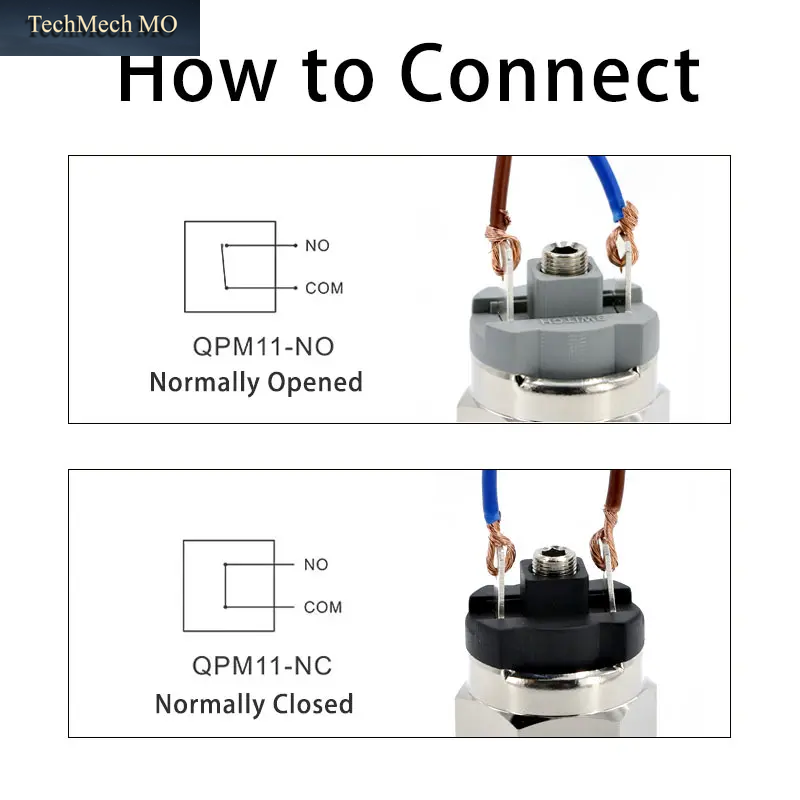

Normally Closed (NC) Normally Opened(NO) |
|
Working Voltage |
DC24V |
|
Working Current(Max) |
500mA |
|
Max Power |
100VA,24VA |
|
isolation Voltage |
1500V,500V |
|
Max Pulse |
200 Cycles/Min |
|
Service life |
100 millions Cycles |
Q&A
Q1: Are you manufacturer ?
A1: Yes,We are.
Q2:How does your factory do regarding quality control?
A2:All the products will be 100% checked before the shipment,also will take video or pictures send to you
Q3:What are the way of the transportation?
A3:Depending upon the weight of goods ,If the parcels wight below 2kg and less than standard volume for shipping will be sent via the shipping method you have choice,and they will be all traceable;If the parcels wight over 2kg or bigger than standard size for shipping will be sent via commercial Express(UPS,Fedex,DHL,TNT,and so on);if there is a difference in freight,please make up for it.Thank you for your understanding.
A4:Standard parts: 15-45days,Non-standard parts: 60days.We will make the delivery as soon as possible with the guarantee quality.
Q5: About tax?
A5:
Thank you for your purchase and browsing,Your feedback is very important for us
Additional information
| Farbe | Qpm11-No-02 Fe 10Mpa, Qpm11-Nc-01 10Mpa, Qpm11-Nc-02 5Mpa, Qpm11-No-01 10Mpa, Qpm11-Nc-01, Qpm11-Nc-02, Qpm11-No-01 5Mpa, Qpm11-No-02 Female, Qpm11-Nc-02 Female, Qpm11-No-02, Qpm11-Nc-02 Fe 5Mpa, Qpm11-Nc-01 5Mpa, Qpm11-No-01, Qpm11-Nc-02 Fe 10Mpa, Qpm11-No-02 5Mpa, Qpm11-Nc-02 10Mpa, Qpm11-No-02 Fe 5Mpa, Qpm11-No-02 10Mpa |
|---|---|
| Spezifikation | Copper, Stainless Steel |
