Raspberry Pi Pico 2 plus Rp2350-Karte RP2350A Rp2350-Plus

【Features At A Glance】

[] RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz

[] 520KB of SRAM, and 4MB of on-board Flash memory

[] Type-C connector, keeps it up to date, easier to use

[] Lithium battery recharge/discharge header, suitable for mobile devices

[] Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current

[] Castellated module allows soldering directly to carrier boards

[] USB 1.1 with device and host support

[] Low-power sleep and dormant modes

[] Drag-and-drop programming using mass storage over USB

[] 26 × multi-function GPIO pins

[] 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels

[] Accurate clock and timer on-chip

[] Temperature sensor

[] Accelerated floating-point libraries on-chip

[] 12 × Programmable I/O (PIO) state machines for custom peripheral support

【Pinheader Options】

【C/C++, MicroPython Support】

[] Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

【Dual-Core, Dual-Architecture】

[] Adopts Dual-Core Arm Cortex-M33 Processor And Dual-Core Hazard 3 RISC-V Processor, Flexible Clock Running Up To 150 MHz

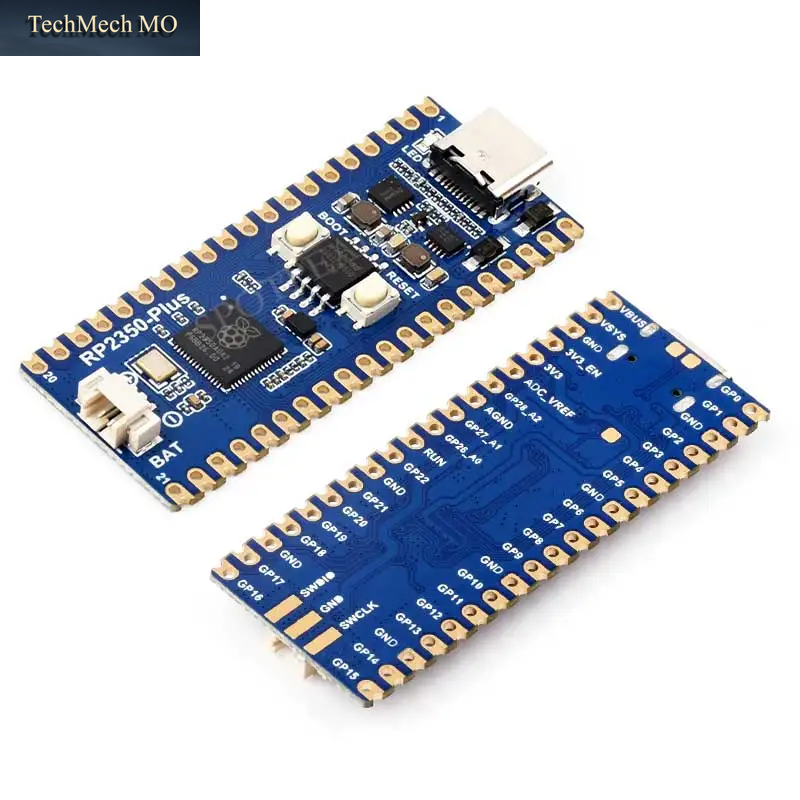

【26 × Multi-Function GPIO Pins】

[] Configurable Pin Function, Allows Flexible Development And Integration

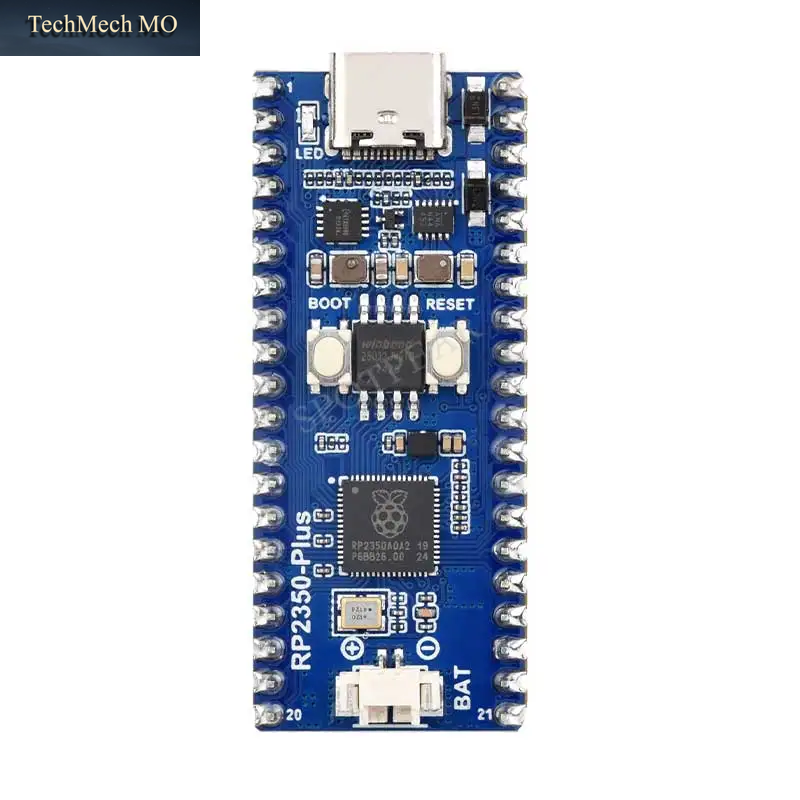

【What’s On Board】

【Outline Dimensions】

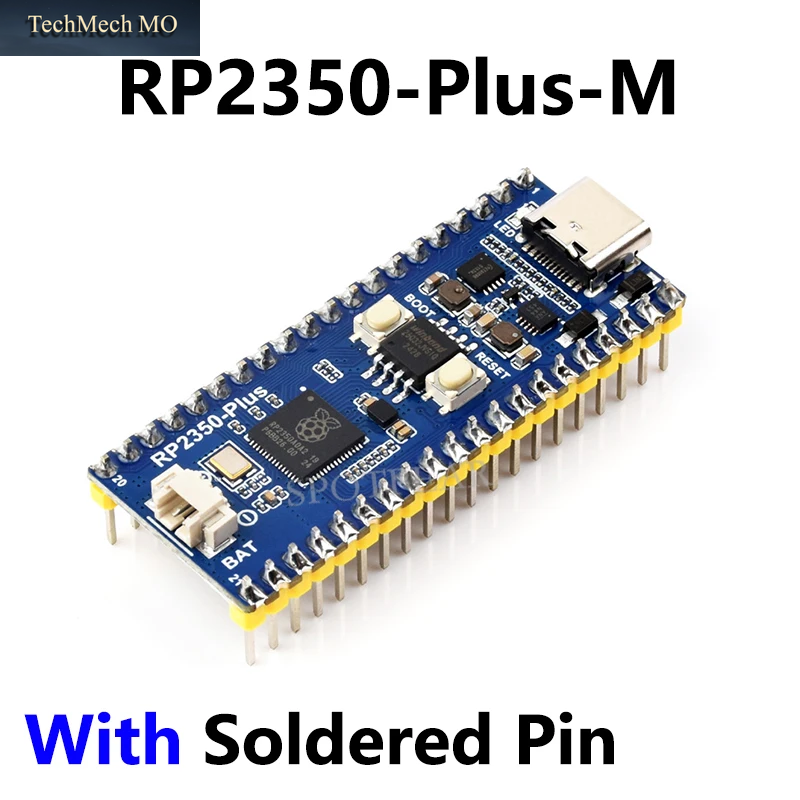

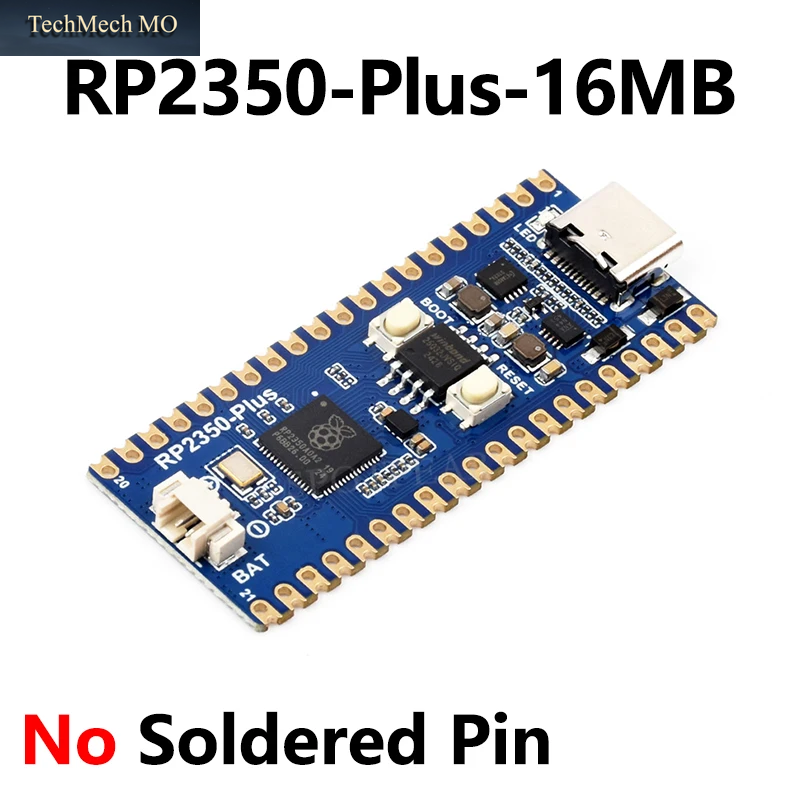

[] RP2350-Plus Option x1

[] RP2350-Plus-Soldered Option x1
