Raspberry Pi Pico 2 RP2350 ETH RP2350A Chip CH9120 TCP/UDP Ethernet Netzwerk Eingebauter Temperatursensor 4 MB Flash/520 KB SRAM
RP2350-ETH
Based On RP2350, Onboard ETH Port
-
RP2350 microcontroller chip designed by Raspberry Pi in the United Kingdom
-
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
-
520KB of SRAM, and 4MB of onboard Flash memory
-
Onboard CH9120 with integrated TCP/IP protocol stack
-
14 Ć multi-function GPIO pins, compatible with some Pico HATs
-
Castellated module allows soldering direct to carrier boards
-
Drag-and-drop programming using mass storage over USB
-
Temperature sensor
-
12 Ć Programmable I/O (PIO) state machines for custom peripheral support

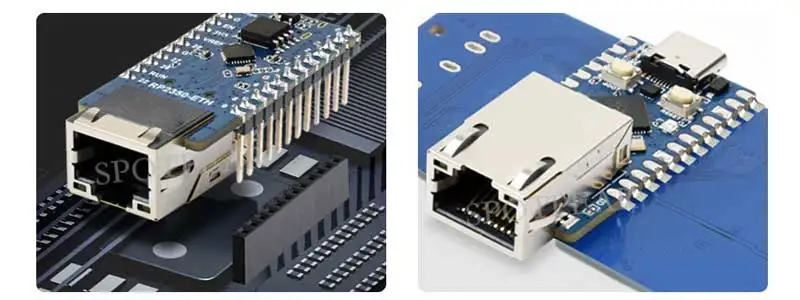

Tiny Size And Easy Integration
Castellated Holes With Immersion Gold Design, Highly Integrated Packaging
Supports Multiple Ways To Be Embedded Into Various Product Applications
This product is without pre-soldered header by default, please contact the Waveshare service team if you need mass customization.

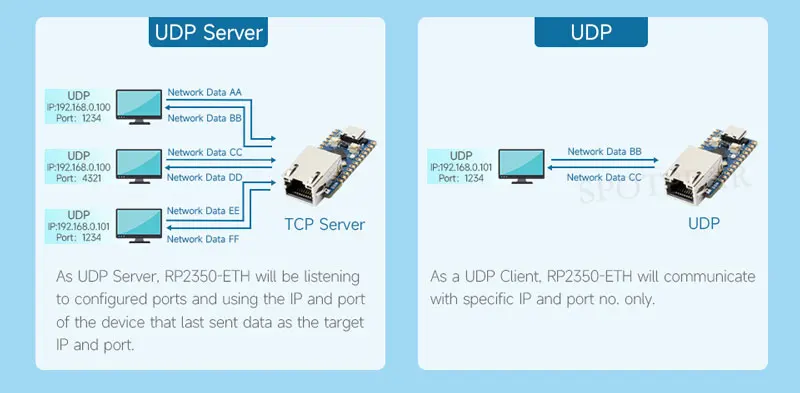

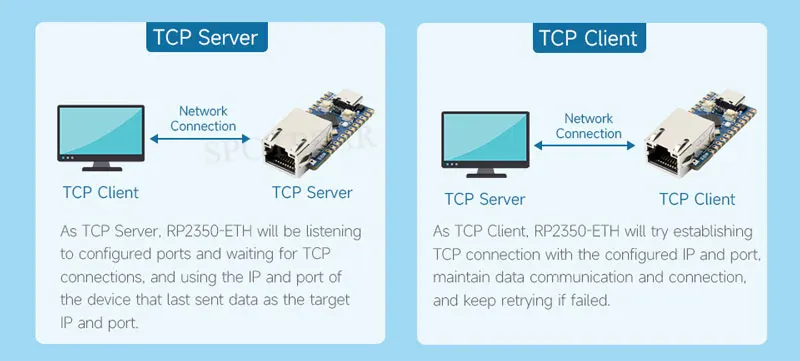

Support Multiple Communication Modes
Supports TCP Server / TCP Client / UDP Server / UDP
Controllable Via Network
* for reference only, please check the Package Content for the detailed part list.
Support C/C++, MicroPython, Arduino
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

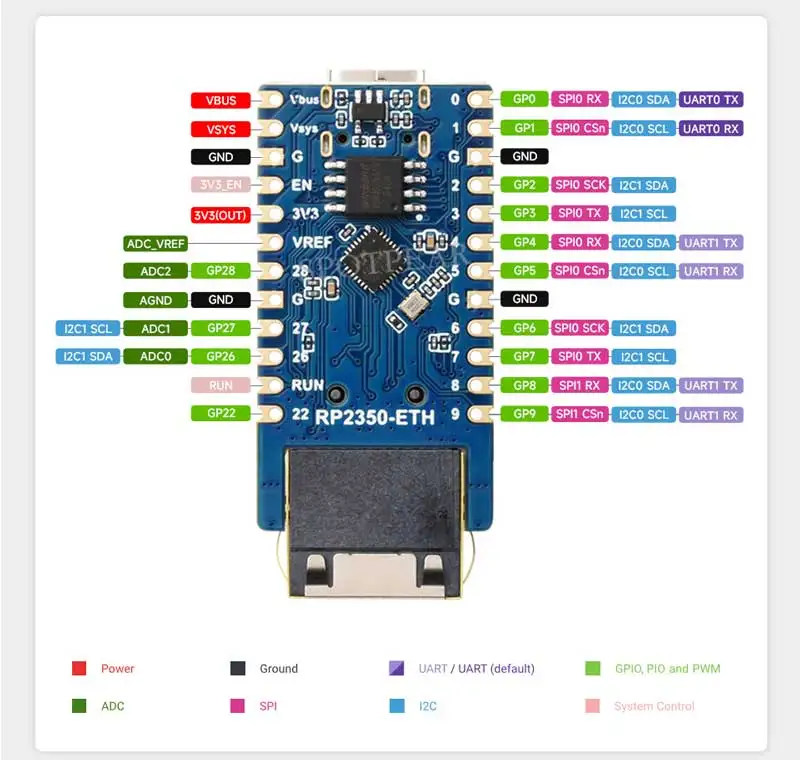

14 Ć Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

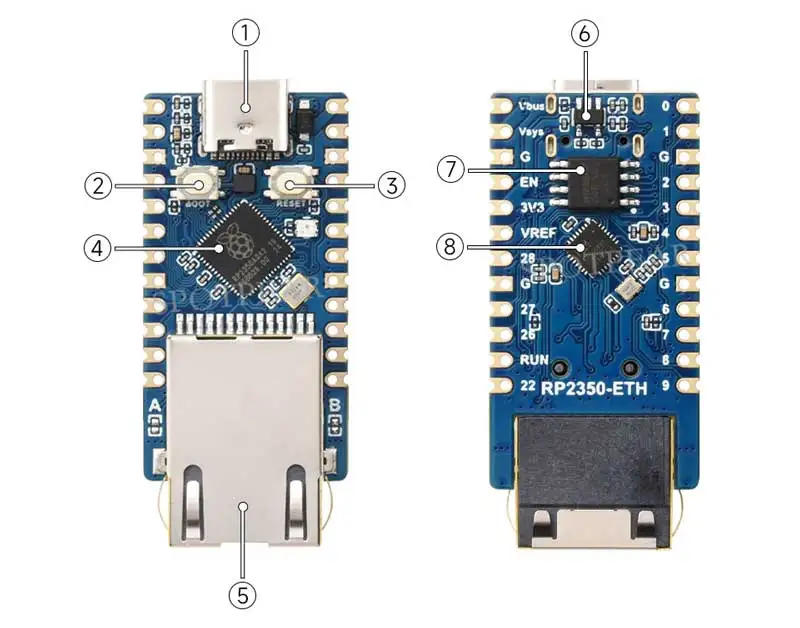

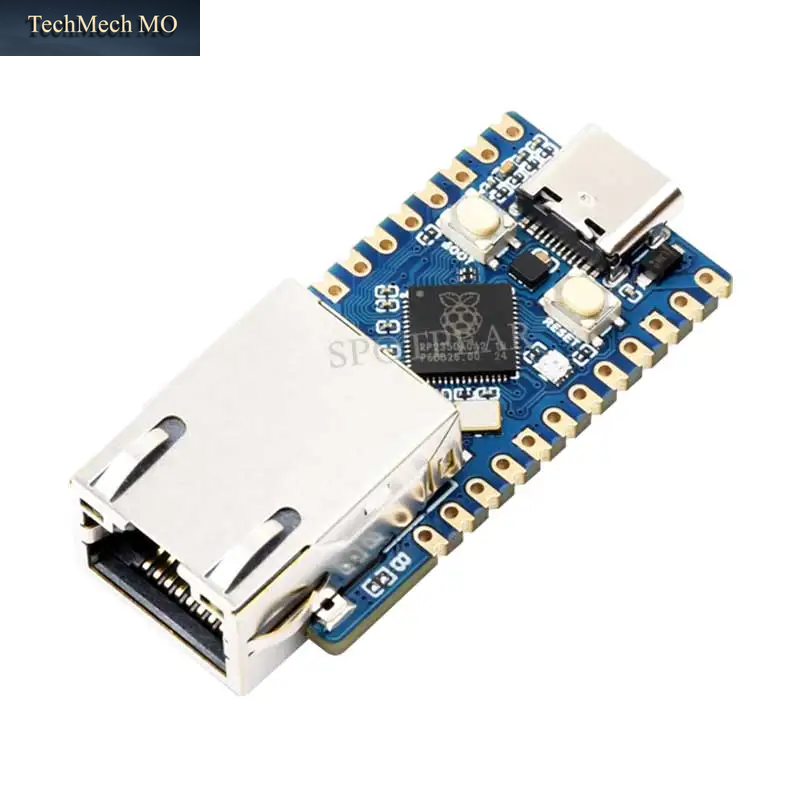

What’s On Board
-
USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices -
BOOT button
Press it when resetting to enter download mode -
RESET button
-
RP2350
Dual-core and dual-architecture design, up to 150 MHz operating frequency
-
RJ45 Ethernet port
-
ME6217C33M5G
Low dropout regulator, 800mA output (Max.) -
W25Q32JVSSIQ
4MB NOR-Flash -
CH9120
Ethernet serial port transmission IC

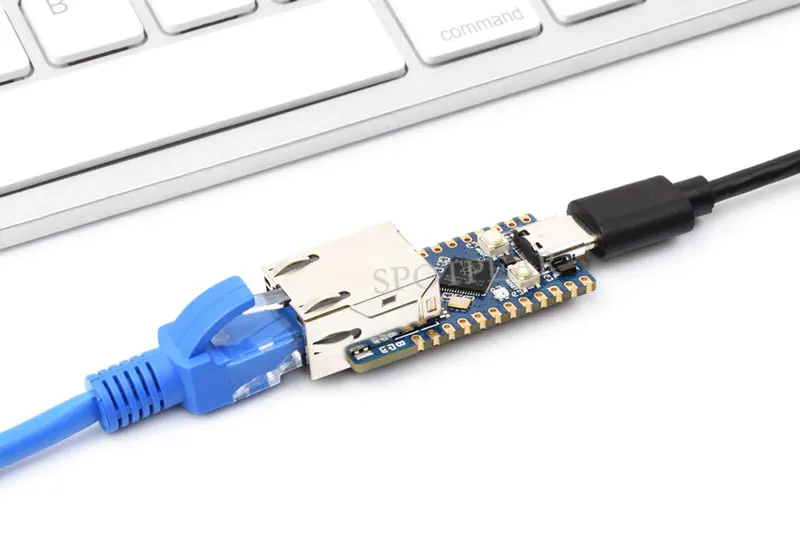

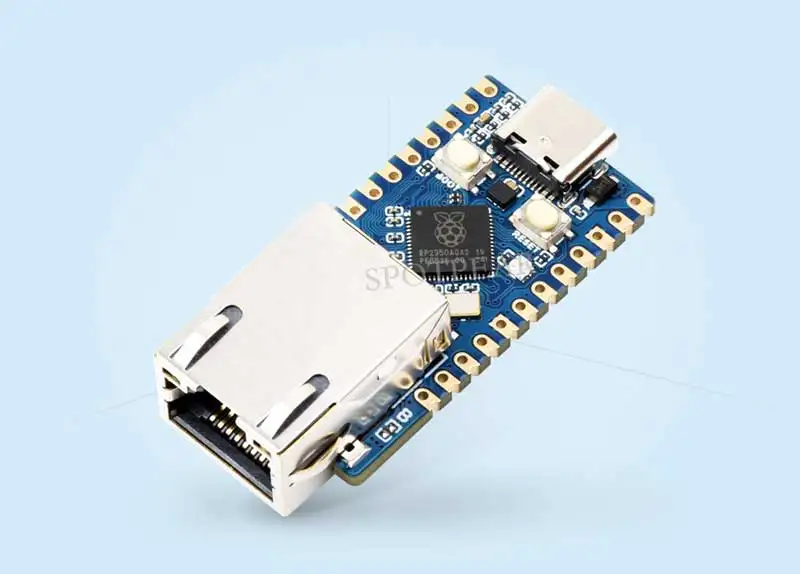

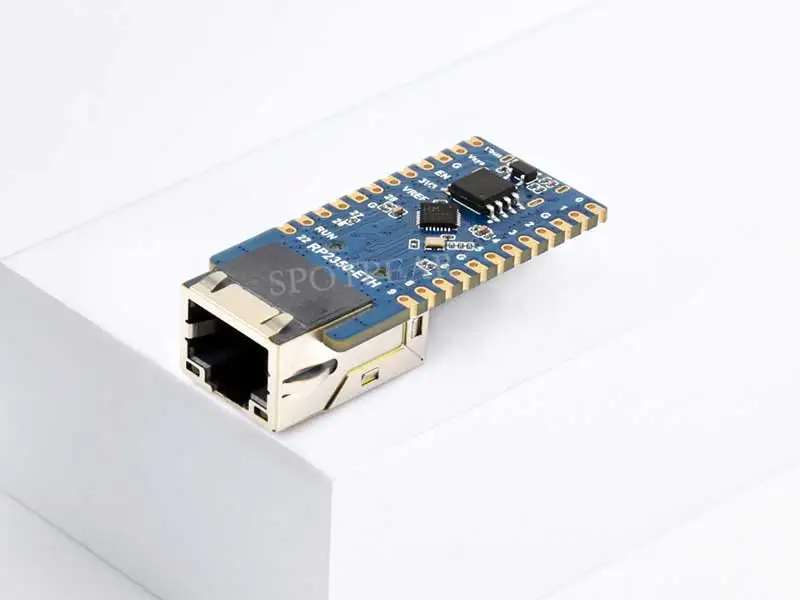

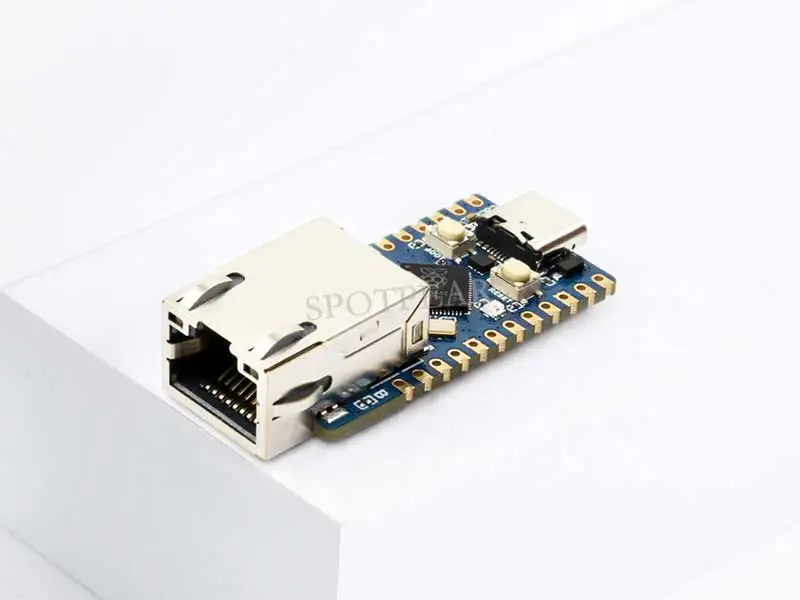

Product Show

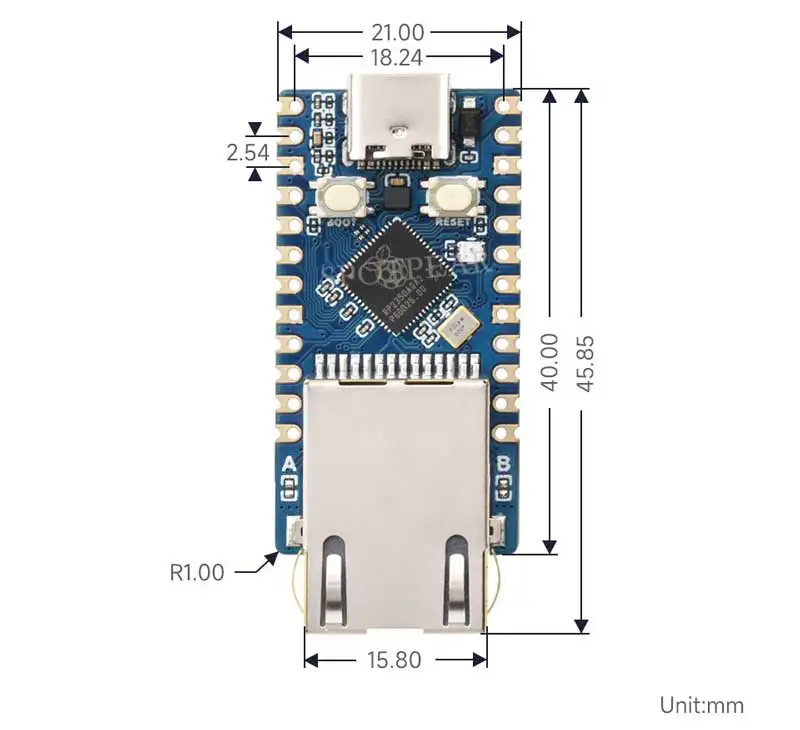

Outline Dimensions
PACKAGE CONTENT
[] RP2350-ETH
