Rear Lower Shock Relocation Lift Kit for Harley Dyna ’06-2017 Fat Bob FXDF Street Bob FXDB Low Rider FXDL Super Glide Wide Glide

Features:

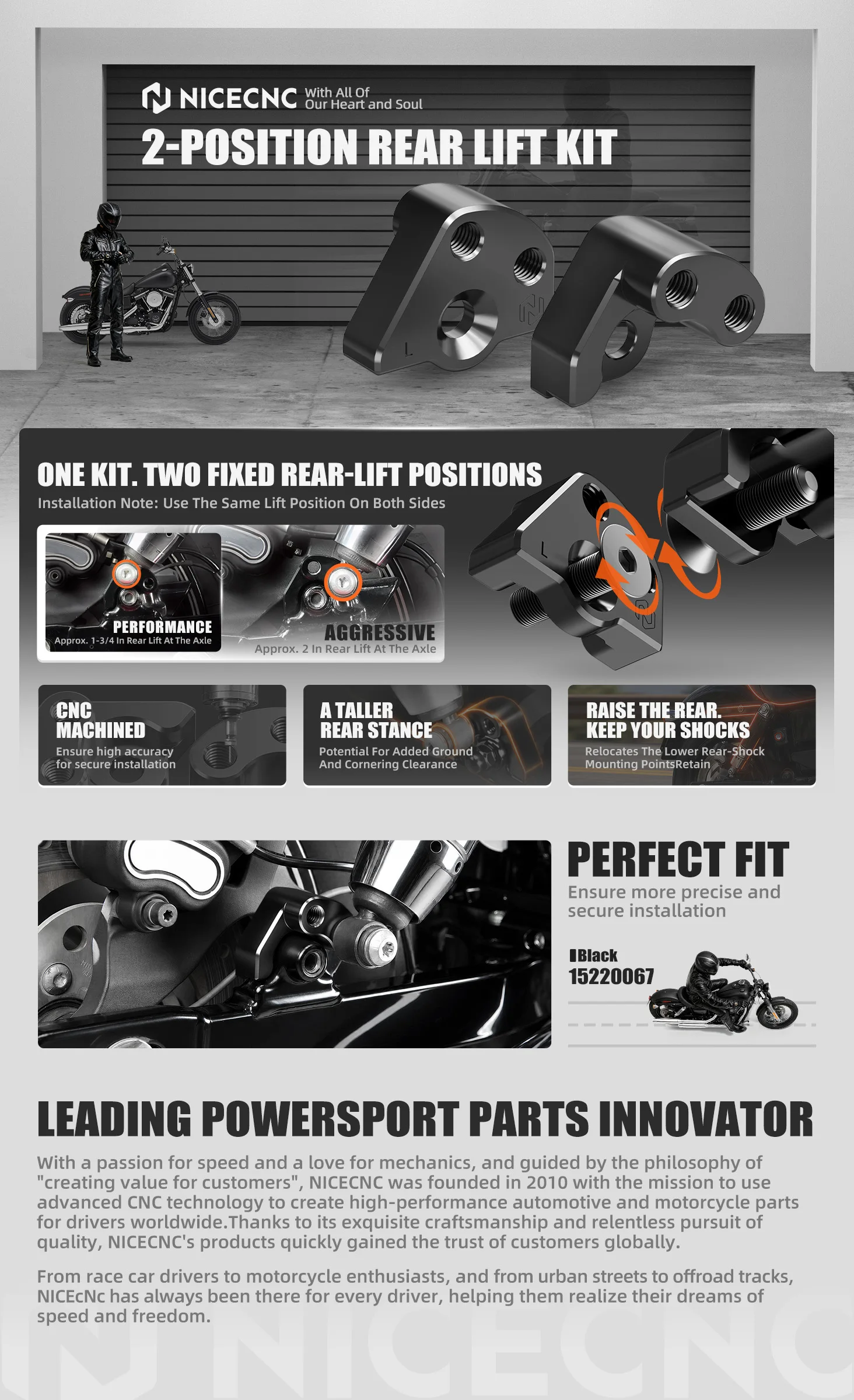

【One Kit, Two Fixed Rear-Lift Positions】
Choose between two defined rear-lift settings with the same kit:
– Performance Position: Approx. 1-3/4 in Rear Lift at the Axle
– Aggressive Position: Approx. 2 in Rear Lift at the Axle
Both figures are approximate nominal rear-lift specifications at the axle. Actual static height varies by model and setup.
【Raise the Rear, Retain Compatible Twin Shocks】
The kit raises the rear by relocating the lower rear-shock mounting points while retaining existing compatible twin rear shocks.
It does not increase shock travel or upgrade spring rate, preload, compression damping, rebound damping, or overall suspension performance.
【Taller Dyna Rear Stance】
The raised rear profile gives the motorcycle a taller Dyna stance.
Depending on the motorcycle and setup, the added height may increase available ground and cornering clearance. Actual clearance varies by model, suspension setup, load, tires, exhaust, foot controls, and other installed components.
【Bolt-On at the Lower Shock Mounts】
The kit installs at the factory lower rear-shock mounting area without drilling or permanent frame modification.
Both sides must use the same selected lift position. Do not install the Performance Position on one side and the Aggressive Position on the other.
【CNC-Machined 6061 Aluminum】
The lift blocks are CNC machined from 6061 aluminum and finished in black anodizing to blend with the Dyna swingarm and rear-suspension area.
Matching left- and right-side lift blocks and steel mounting hardware are included.

Real-World Fixed-Point Reference
Measured on our unloaded 2014 Dyna Fat Bob FXDF with its factory 12 in rear shocks, held upright on level ground.
Measurement Point: Vertically from level ground to the lower edge of the left rear fender strut cover, directly below the reflector.
– Stock Baseline: 22.4 in (57.0 cm)
– Performance: 23.8 in (60.5 cm)
– Aggressive: 24.0 in (61.0 cm)
These measurements show the height change at one fixed point on our test motorcycle. They are a separate test-bike reference from the approximate 1-3/4 in and 2 in rear-lift specifications at the axle.
Actual static height varies by Dyna model, shock length, spring rate, preload, vehicle load, tire setup, and suspension sag.

Item Specifications
– Brand: NICECNC
– Condition: Brand New
– Product Type: 2-Position Rear Lift Kit
– Structural Type: Lower Shock Mount Relocation Kit
– Lift Block Material: 6061 Aluminum
– Hardware Material: Steel
– Process: CNC Machined
– Finish: Black Anodized
– Lift Positions: Performance / Aggressive
– Performance Position: Approx. 1-3/4 in Rear Lift at the Axle
– Aggressive Position: Approx. 2 in Rear Lift at the Axle
– Installation Location: Lower Rear-Shock Mounting Area
– Installation Type: Bolt-On
– Drilling Required: No
– Permanent Frame Modification Required: No

Package Included
– 1 Pair of Left- and Right-Side Lift Blocks
– 1 Set of Steel Mounting Hardware
Package contents are shown in the product images.

Fitment
Designed for select 2006–2017 Harley-Davidson Dyna models.
Check the Vehicle Compatibility Table for the exact model, year, and trim before ordering.
