RSP60-L RS60-L Manual 360 Degree High R Axis 60Mm Precision Angle Adjustment Platform Optical Heavy Duty Rotary Slide Micrometer

  • SKU: N/A
RSP60-L RS60-L Manual 360 Degree High R Axis 60Mm Precision Angle Adjustment Platform Optical Heavy Duty Rotary Slide Micrometer
Roll over image to zoom in
Click to open expanded view

Price range: 198,99 € through 268,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Thank you for visiting my store
Feature:
Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer

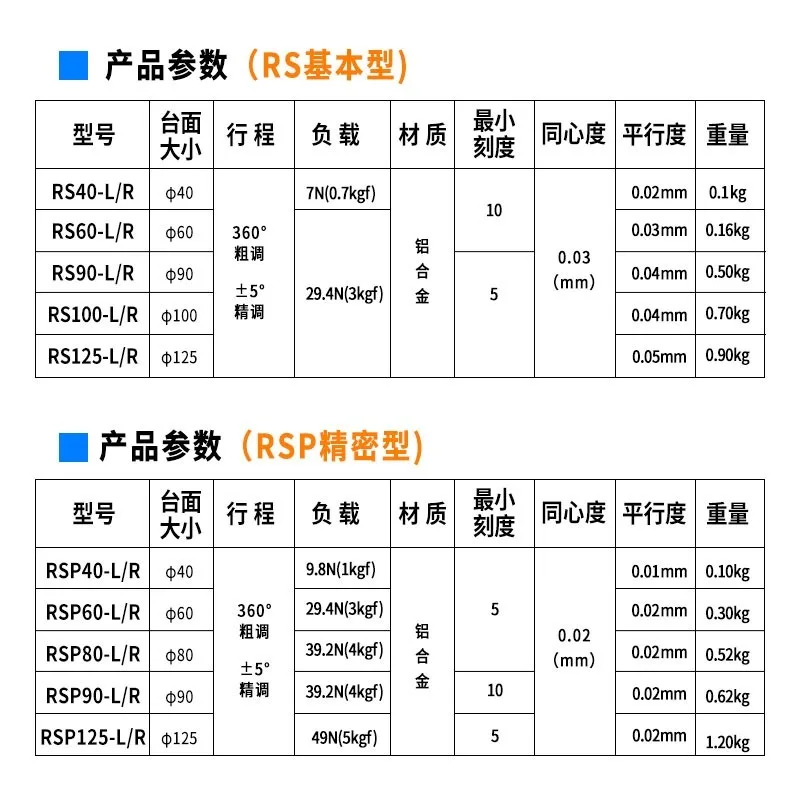

RSP60-L/RSP60-R (Precision type):
1. Direction of rotation: R axis of rotation
2. Material: Aluminum
3. Table size: 60mm
4. Stroke: 360 ° (coarse), ± 5 ° (fine-tuning)
5. Load: 29.4N (3kgf)
6. Minimum scale: 5′
7. Parallelism: 0.02mm
8. Weight: 0.3kg

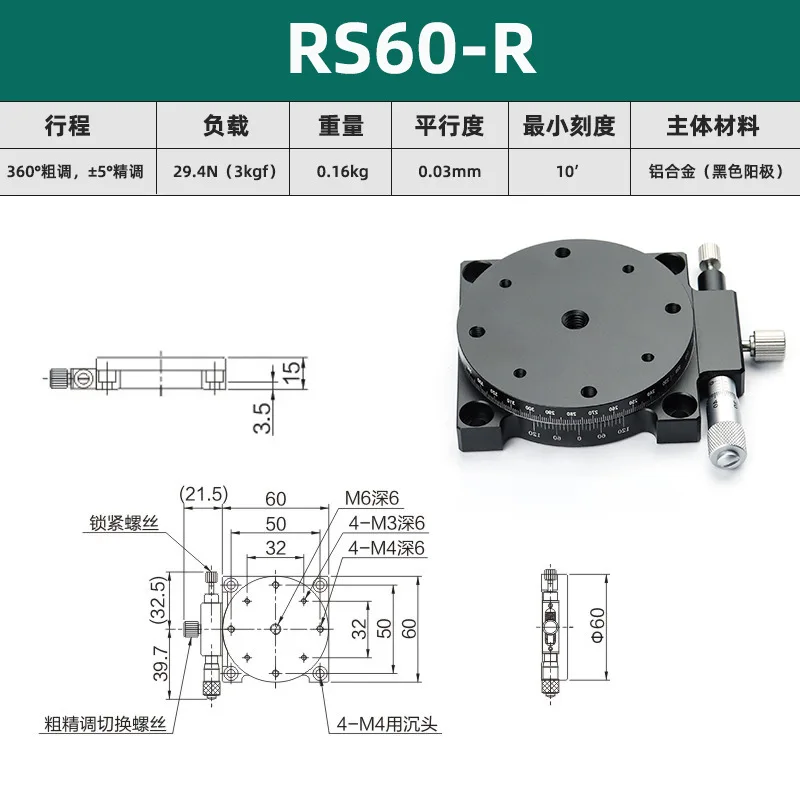

RS60-L/RS60-R (standard type):
1. Direction of rotation: R axis of rotation
2. Material: Aluminum
3. Table size: 60mm
4. Stroke: 360 ° (coarse), ± 5 ° (fine-tuning)
5. Load: 29.4N (3kgf)
6. Minimum scale: 10′
7. Parallelism: 0.05mm

Additional information

Color

Rsp60-L, Rs60-R, Rsp60-R, Rs60-L
