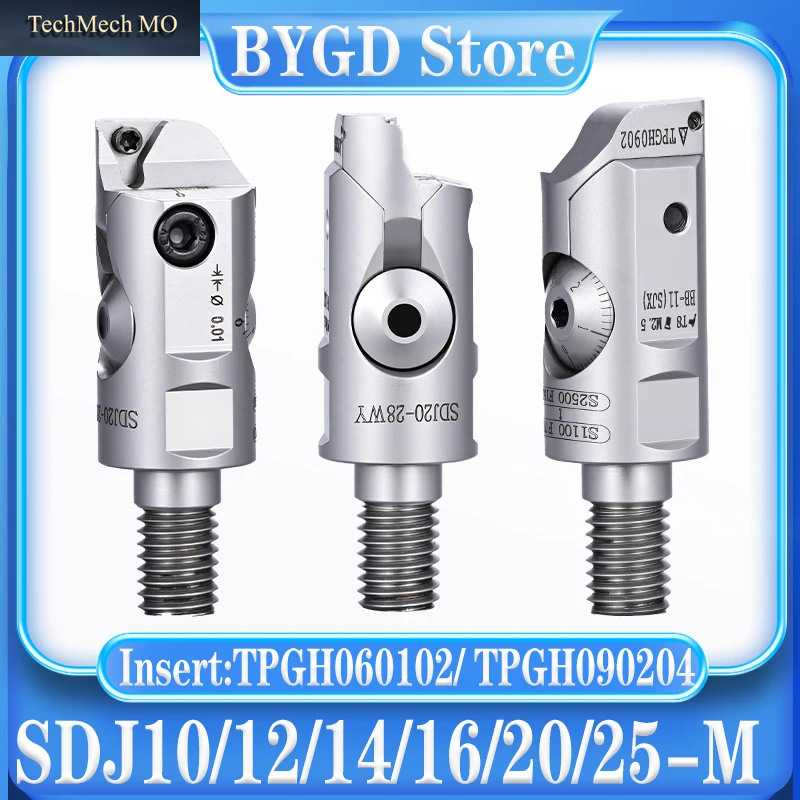

SDJ thread precision boring head

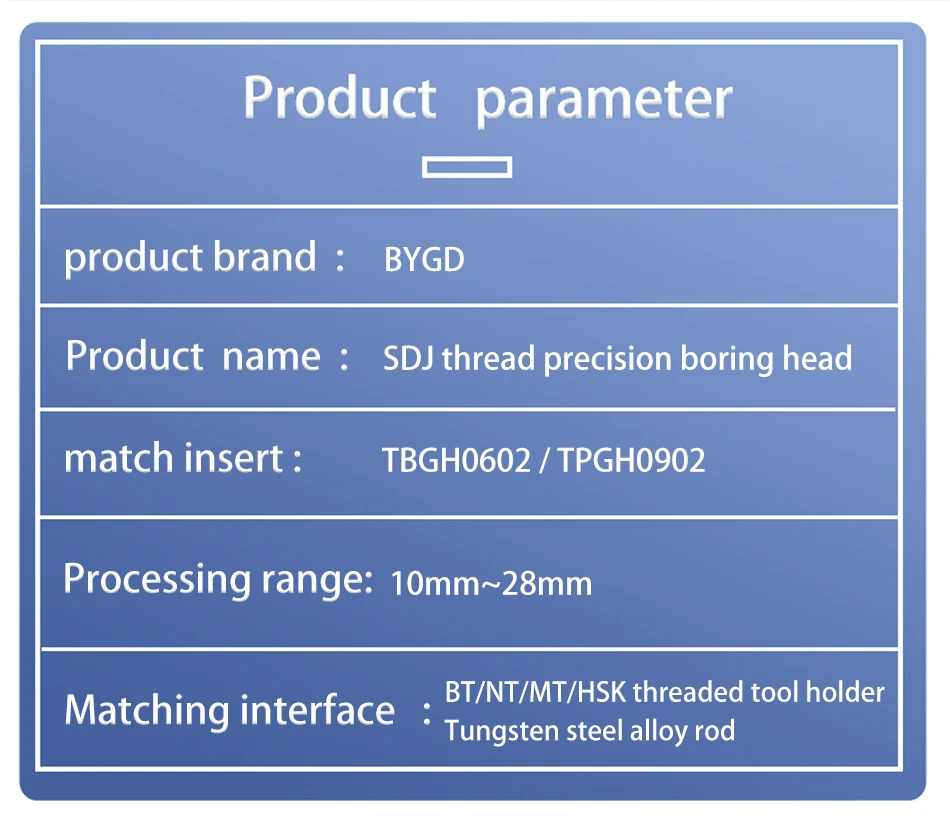

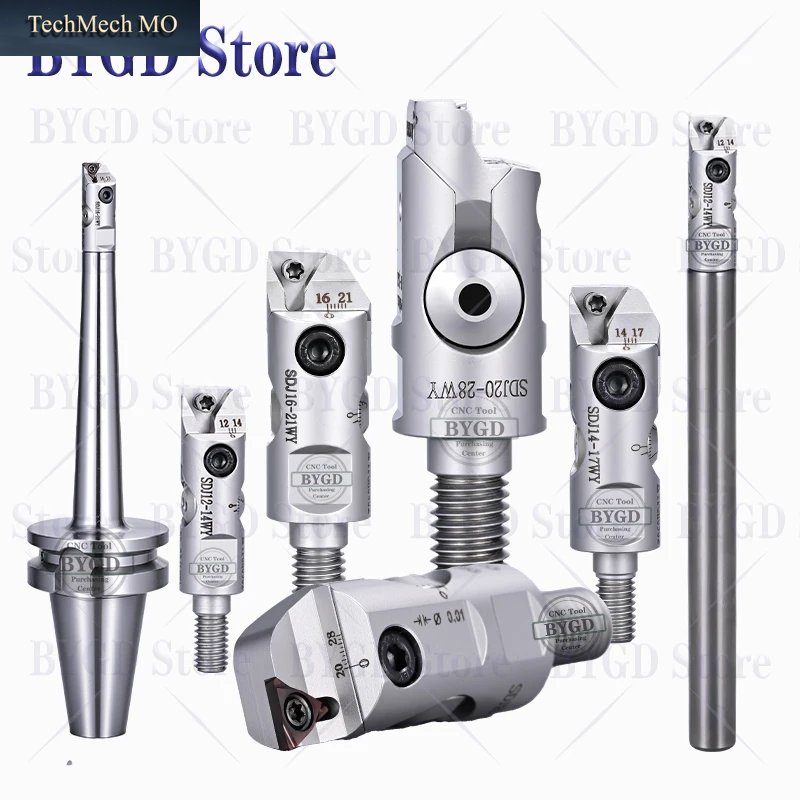

Product Name: SDJ Seismic Precision Boring Head

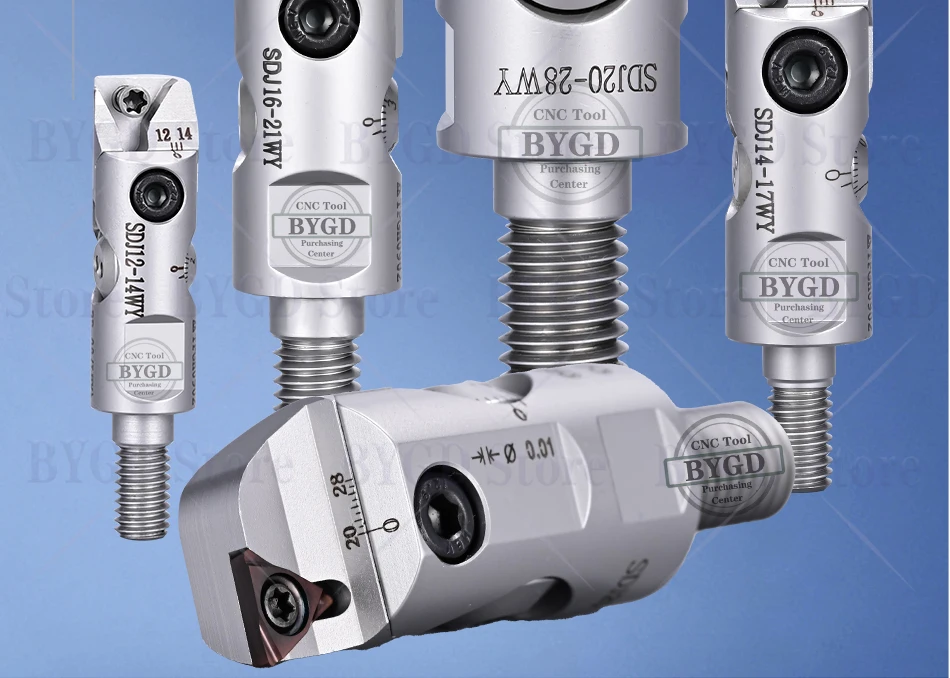

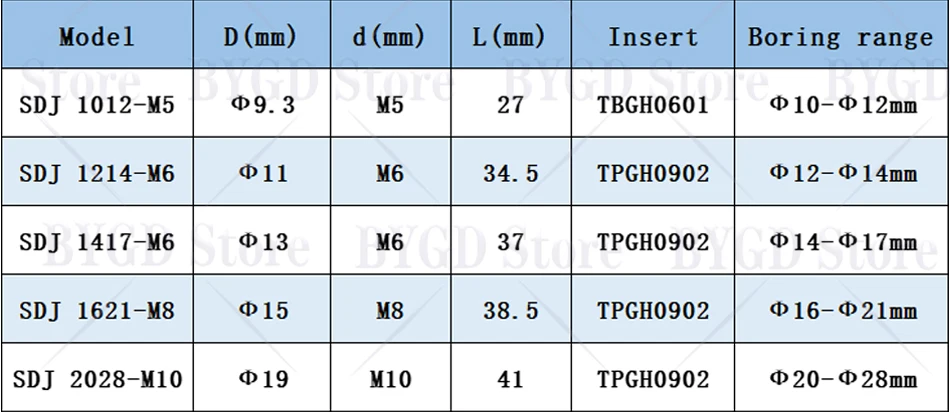

Specification: SDJ1012 – SDJ2028

Material: P20

Boring range: 10mm-28mm

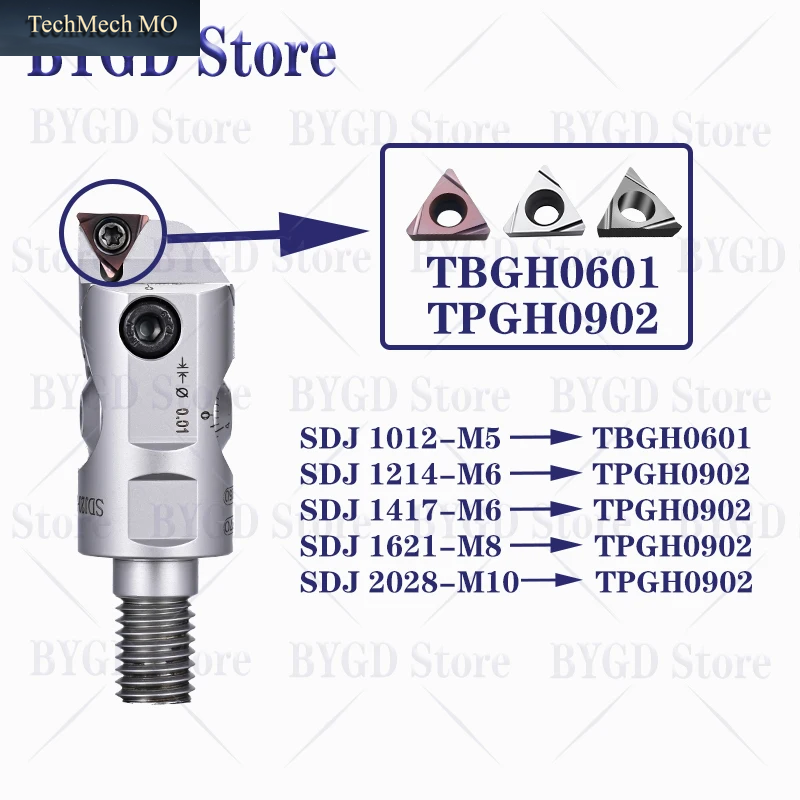

Applicable insert: TBGH0602 / TPGH0902

Product performance:

1.Displacement 10mm error ratio 0.001

2.Displacement sensitivity unilateral 0.0025

3.Measured unilateral cutting accuracy variable 0.005

4.Swivel clearance 0.025

5.Roundness on one side (4 times diameter) 0.001

6.Single side cutting amount: 0.8mm

(Note: Dimensions are manually measured and may have a small amount of error)

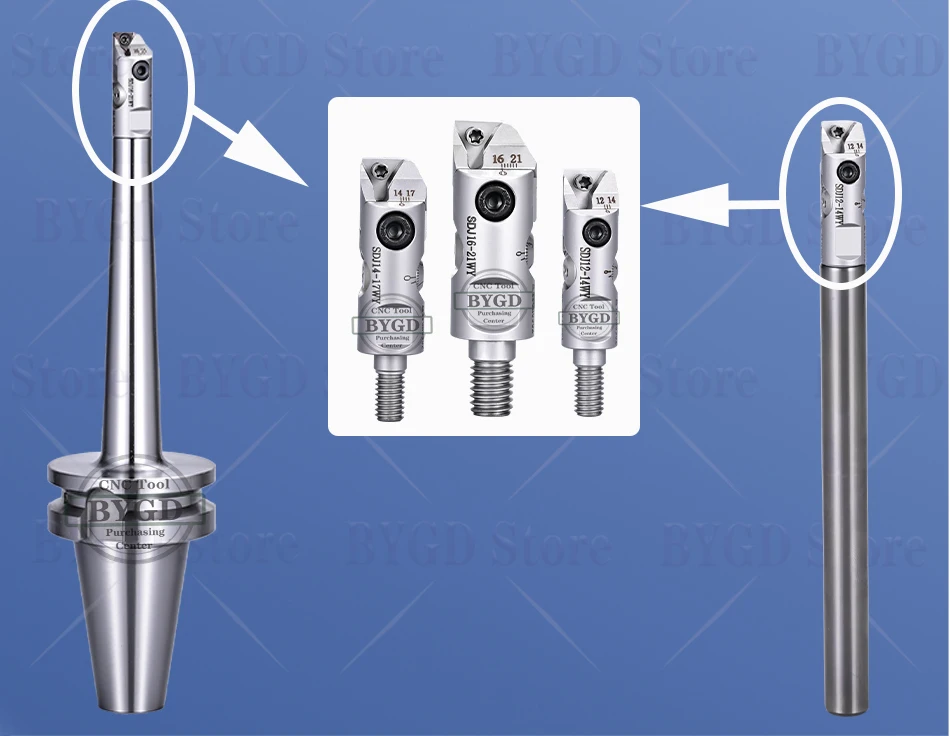

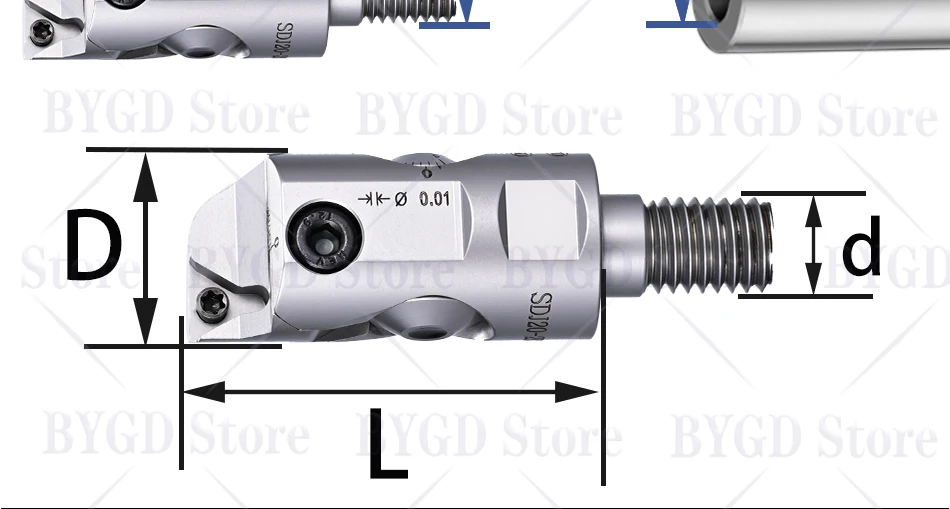

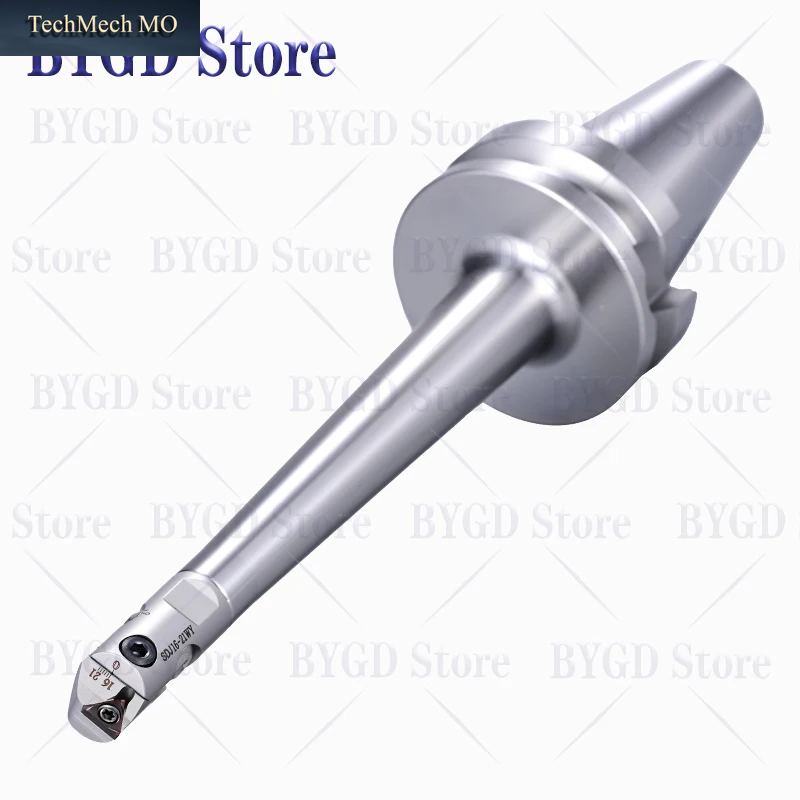

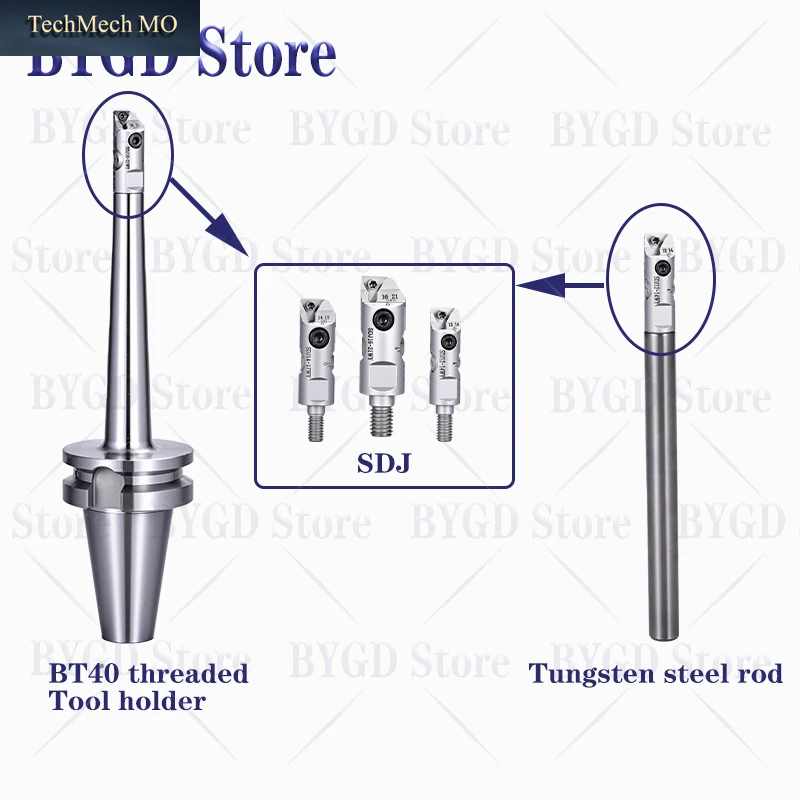

SDJ Matching Tool Holder Selection Instructions

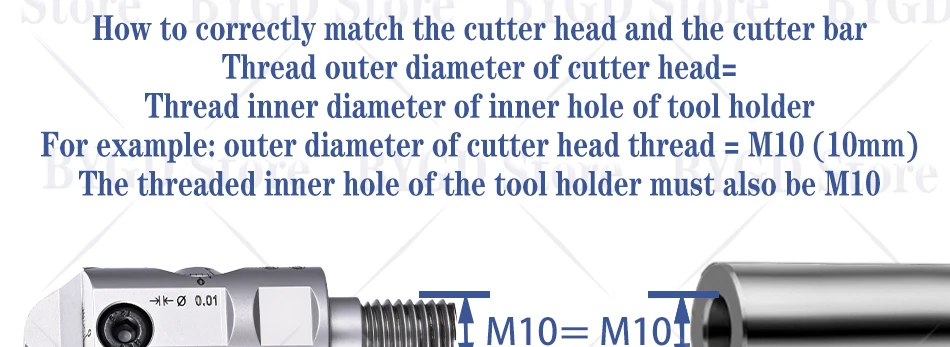

How to correctly match the cutter head and the cutter bar

Thread outer diameter of cutter head=

Thread inner diameter of inner hole of tool holder

For example: outer diameter of cutter head thread = M10 (10mm)

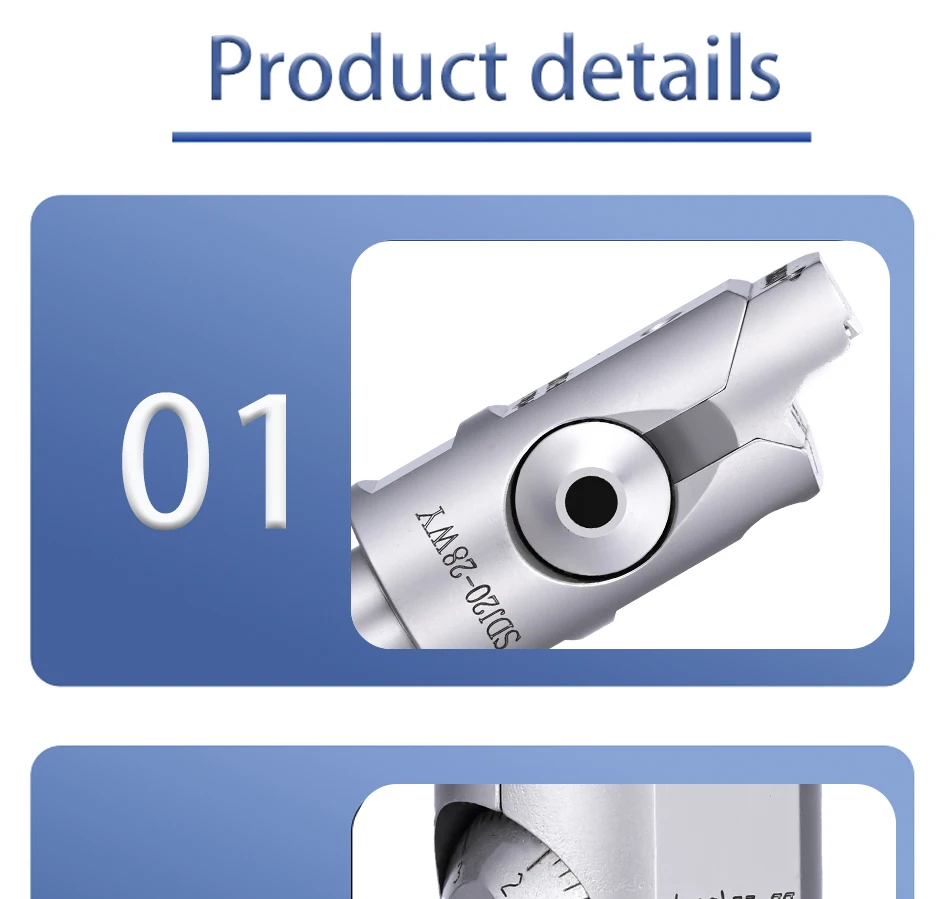

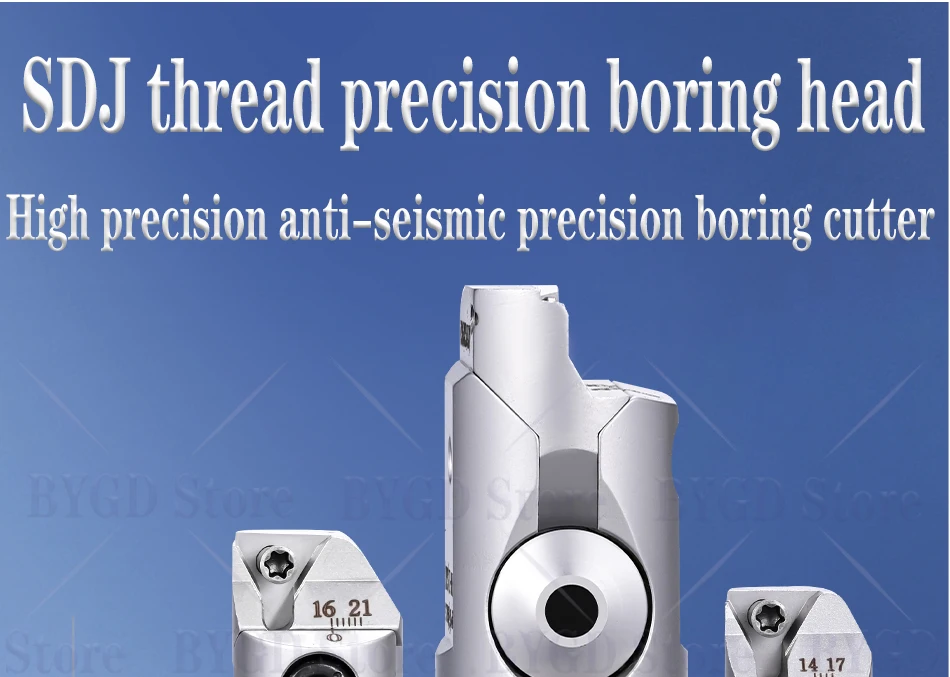

SDJ thread precision boring head

High precision anti-seismic precision boring cutterAlloy tungsten steel material,

Deep hole strong seismic resistance

High hardness tungsten steel material,

Enhance the seismic resistance of deep hole processing,

Special boring tool construction,

Deep and small hole machining is not easy to vibrate the tool.High precision fine tuning

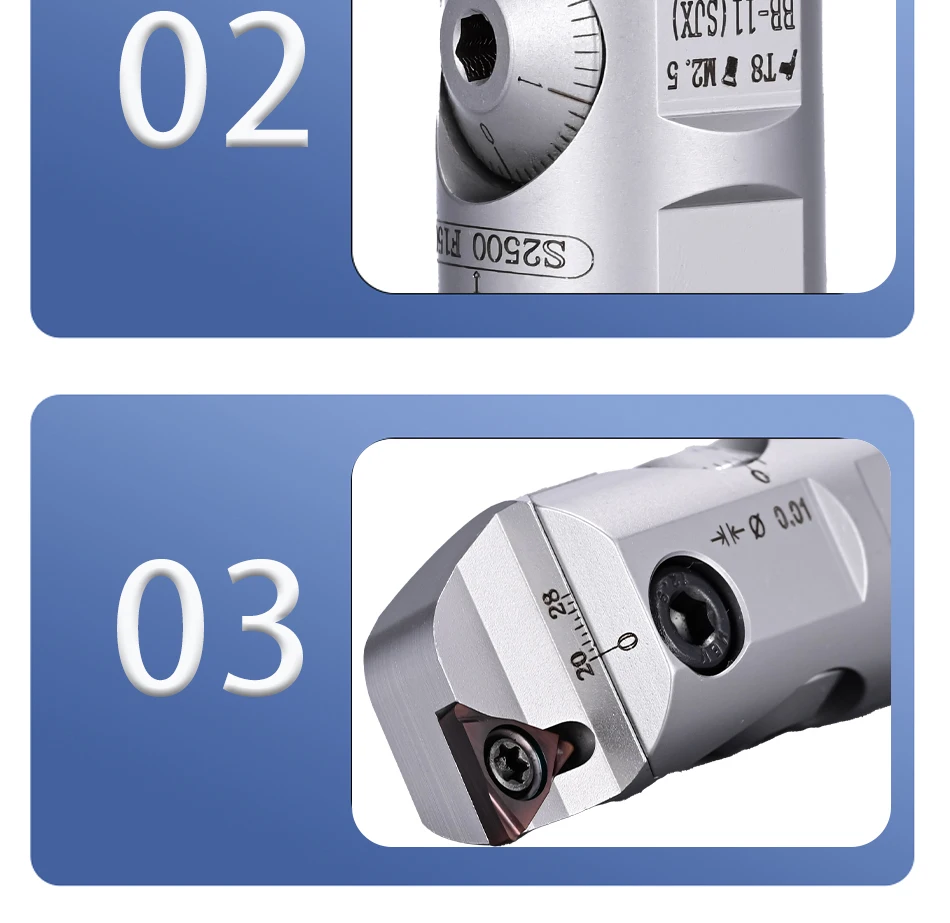

Precision machining

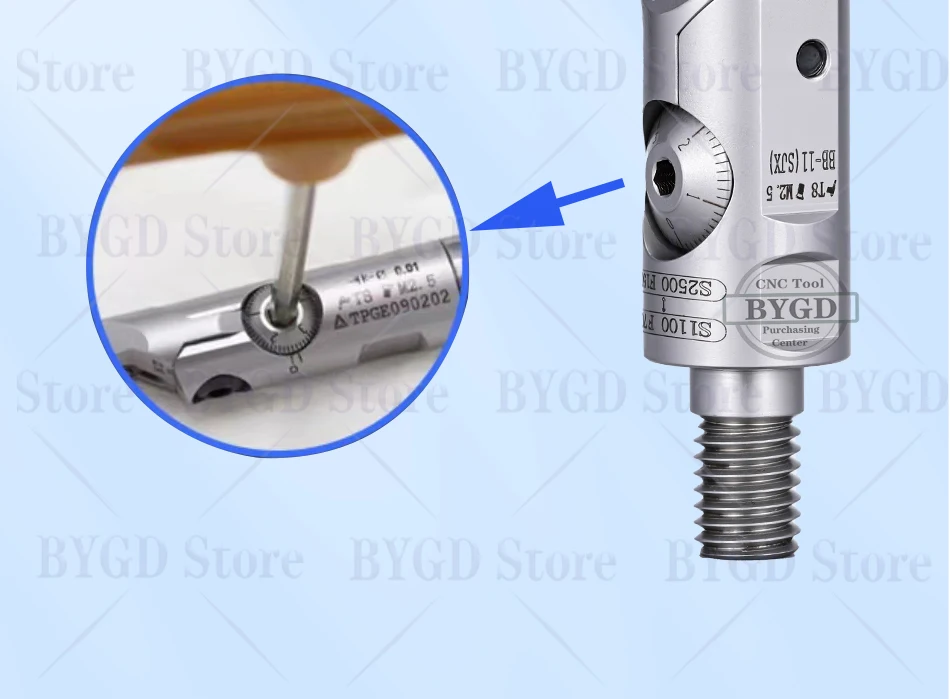

Wrench manual precision fine adjustment,

The scale is clear and does not fade,

Processing aperture true roundness 0.005mmDeep hole processing

Faster and more stable

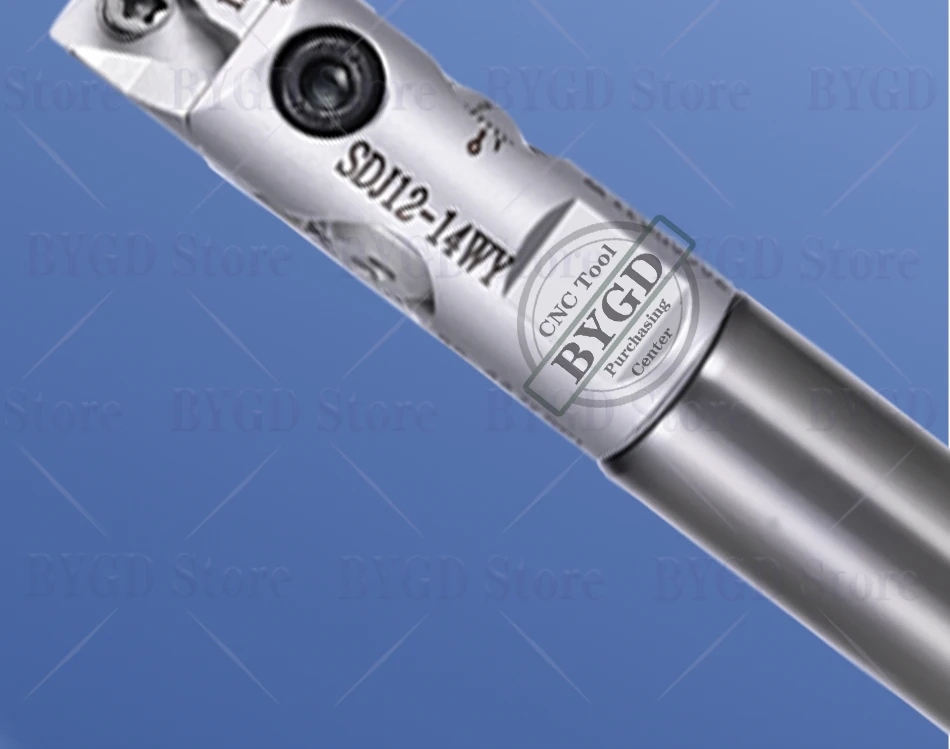

You can choose tungsten steel alloy tool holders independently,

High hardness seismic resistant slender matrix,

Very suitable for deep and small hole processing

Good seismic performance and accuracy

Higher parameters can be used for processingInsert a perfectly matched cutterbed

High pressure resistance and processing efficiency

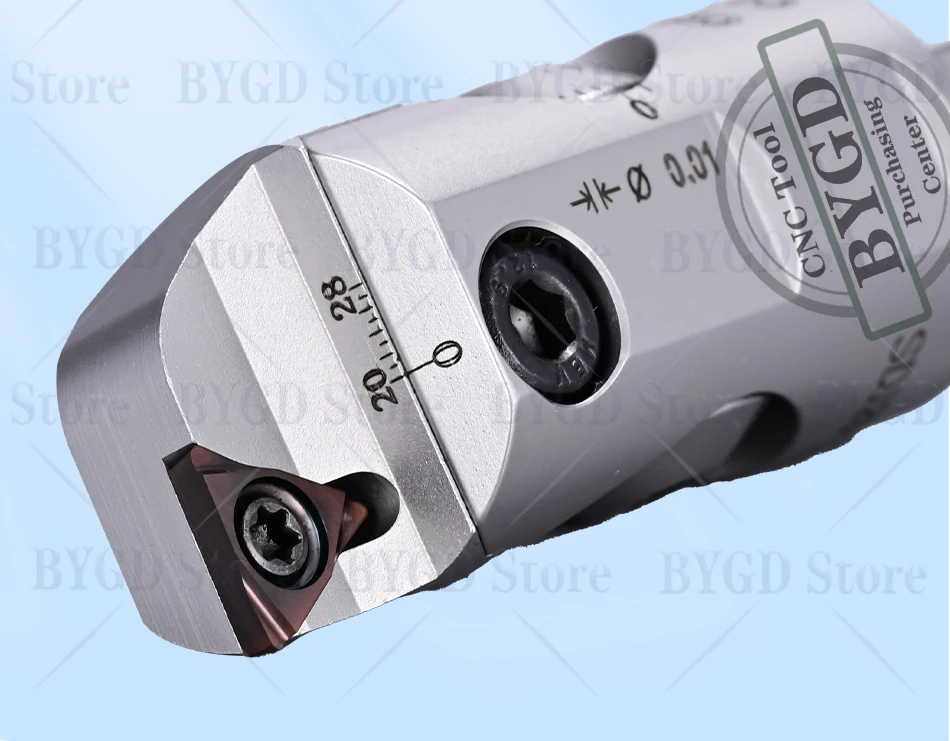

Screw compression structure,

The insert fits perfectly with the cutterbed,

Plus SDJ boring head with high seismic resistance

Stable cutting without tool alignment

Can clearly display the boring size of the boring toolEnterprise Introduction
