SDJ08 SDJ10 SDJ12 SDJ14 SDJ16 EWN20 EWN25 EWN32 RBH EWN SDJ Feiner Bohrkopf, Verstellbarer Bohrwerkzeughalter, Bohrung LBK1 LBK CKB

  • SKU: N/A
SDJ08 SDJ10 SDJ12 SDJ14 SDJ16 EWN20 EWN25 EWN32 RBH EWN SDJ Feiner Bohrkopf, Verstellbarer Bohrwerkzeughalter, Bohrung LBK1 LBK CKB
Roll over image to zoom in
Click to open expanded view

Price range: 260,99 € through 362,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

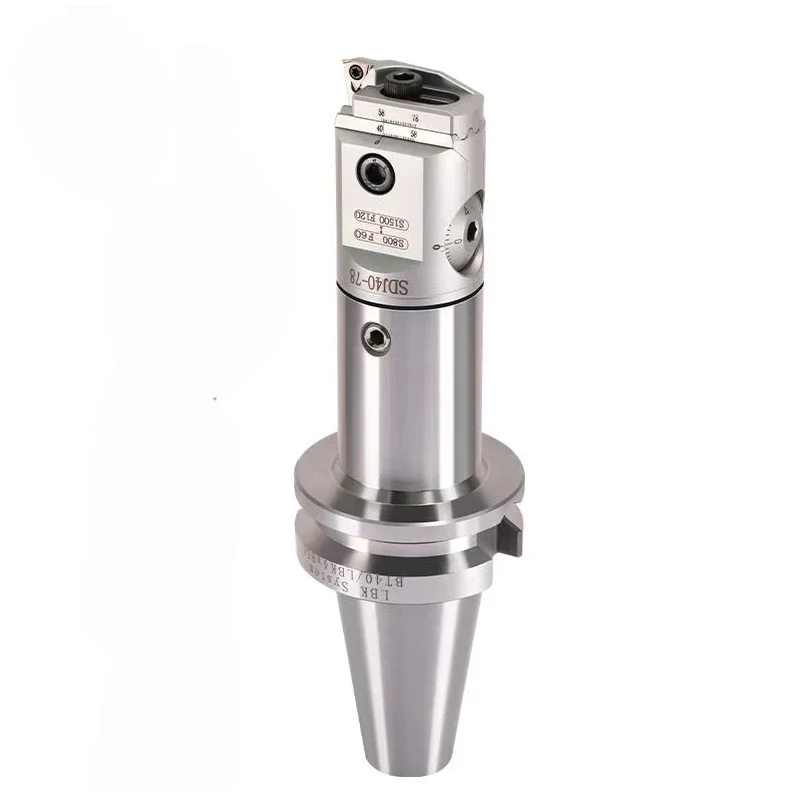

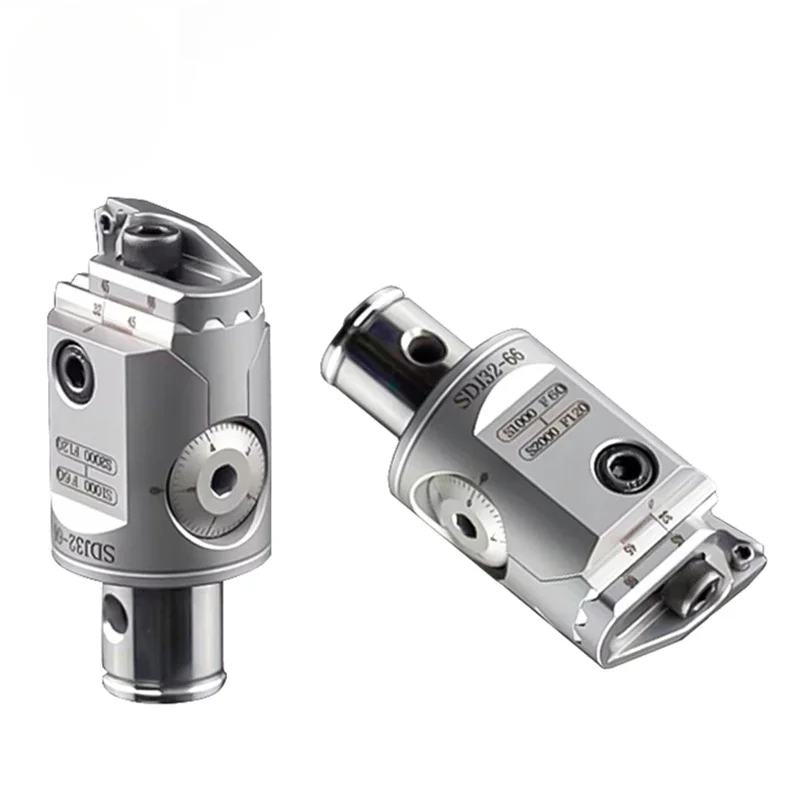

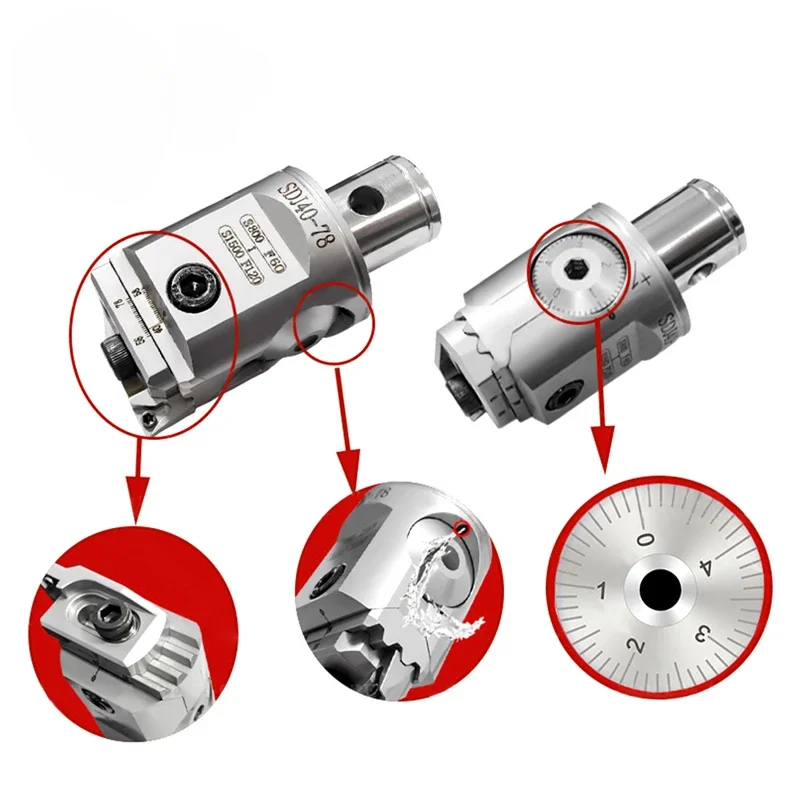

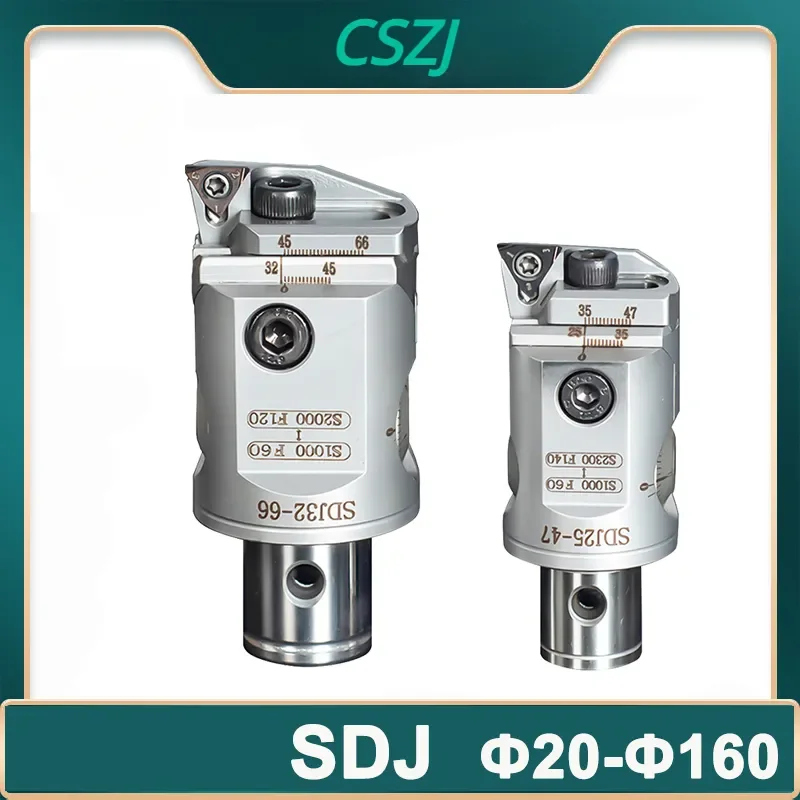

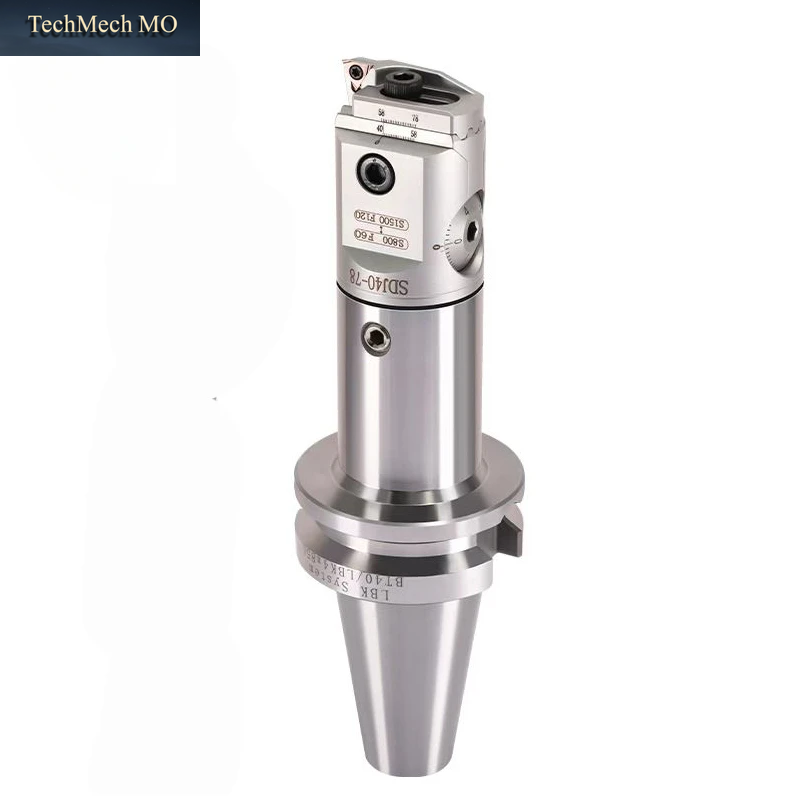

SDJ advanced fine boring head

1.Displacement 10mm error ratio 0.001

2.Displacement sensitivity unilateral 0.0025

3.Measured unilateral cutting accuracy variable 0.005

4.Swivel clearance 0.025

5.Roundness on one side (4 times diameter) 0.001

6.Single side cutting amount: 0.8mm

7.insert:TPGE0902

One side cutting 0.8mm,

Fast and large allowance cutting.

(Conventional EWN boring head ,

The unilateral cutting amount is 0.2mm,

SDJ is (0.8mm)=EWN(0.2mm) × 4)

————————————————————————————–

————————————————————————————–

————————————————————————————–

————————————————————————————–

Additional information

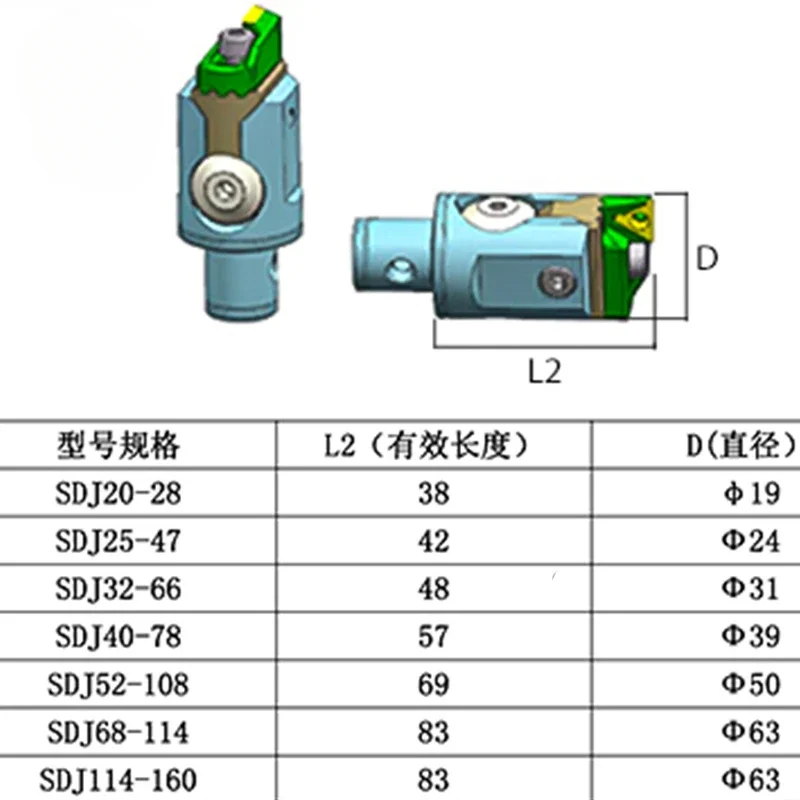

Lochdurchmesser

Sdj 25-47 (Lbk2), Sdj 40-78 (Lbk4), Sdj 68-114 (Lbk6), Sdj 52-108 (Lbk5), Sdj 32-66 (Lbk3), Sdj 114-160 (Lbk6), Sdj 20-28 (Lbk1)
