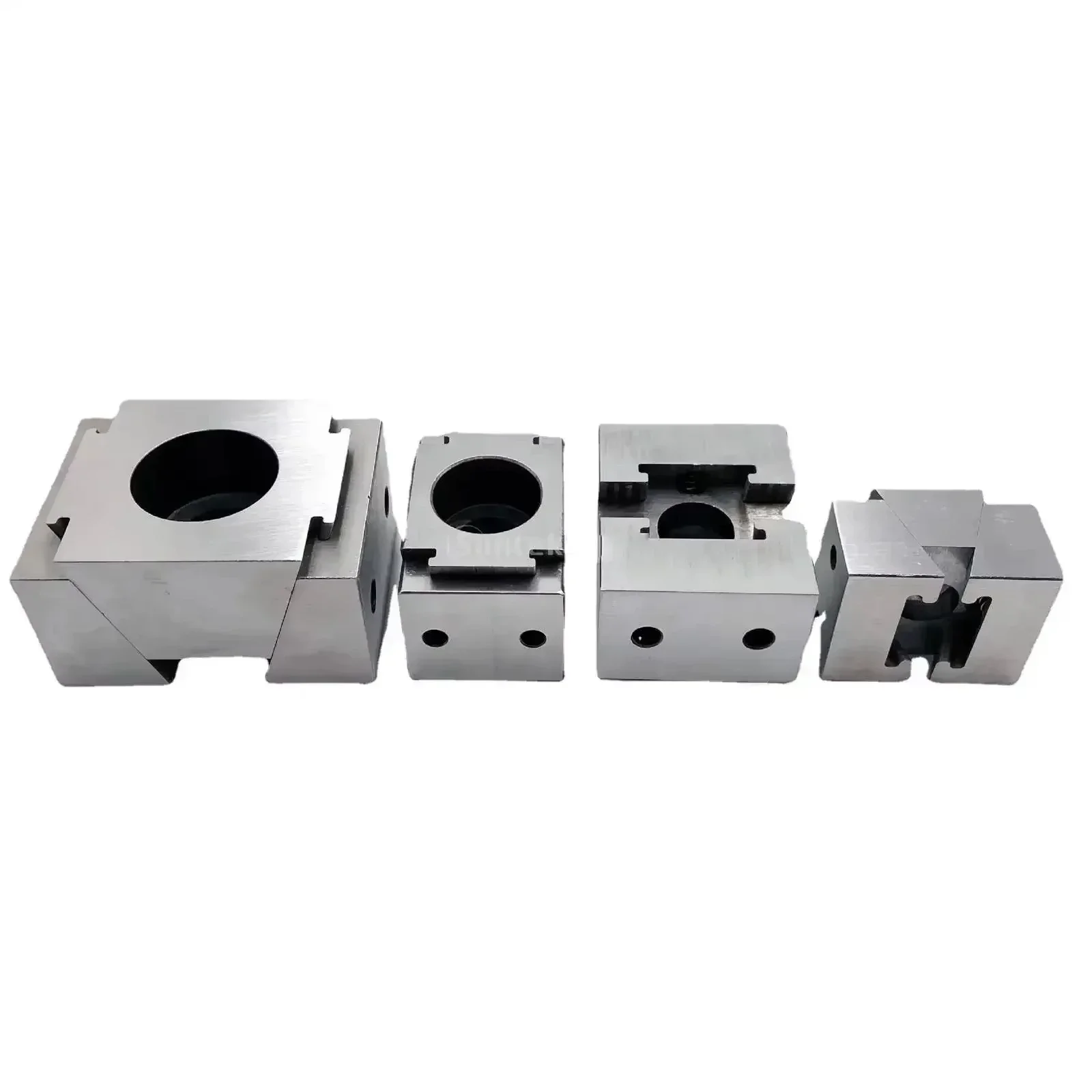

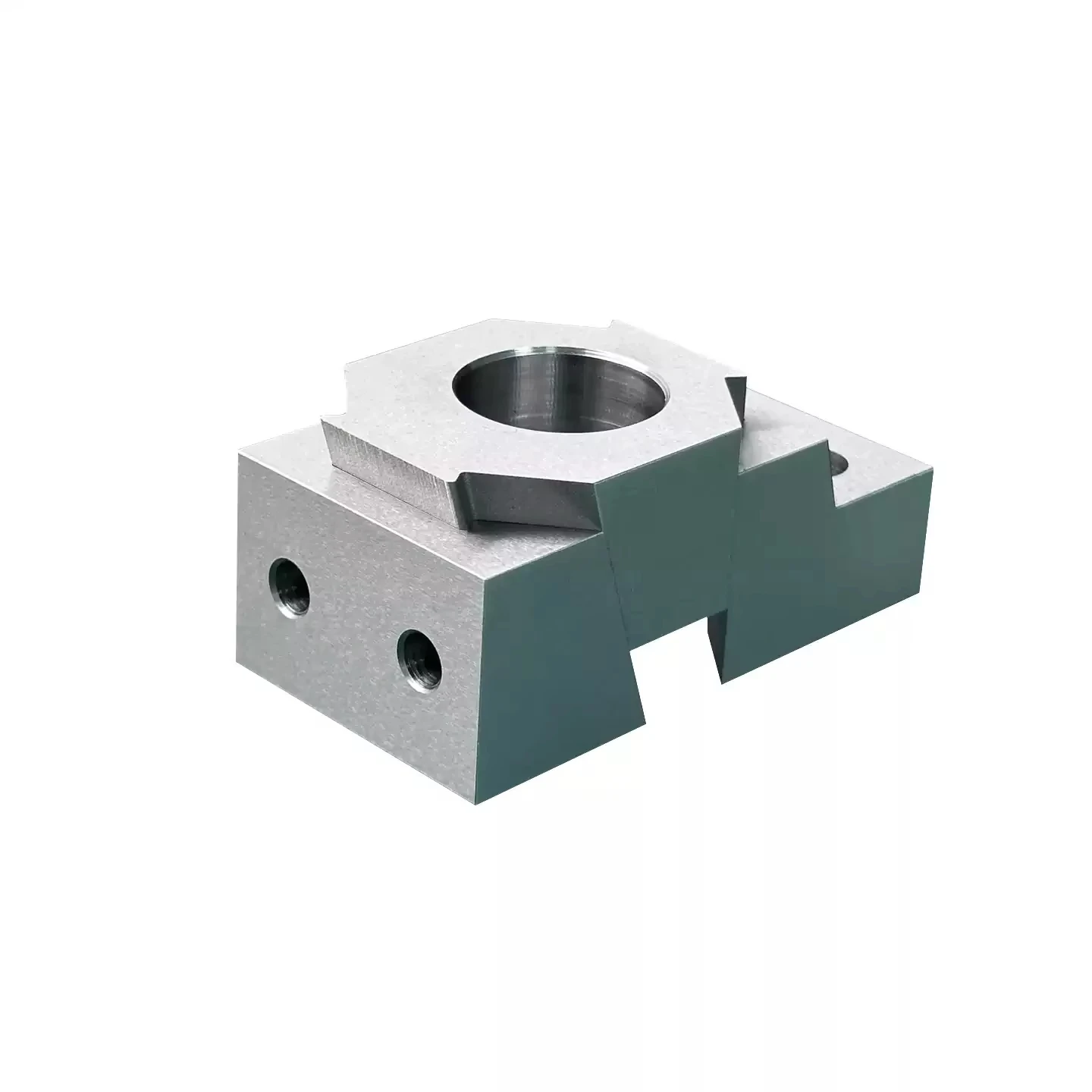

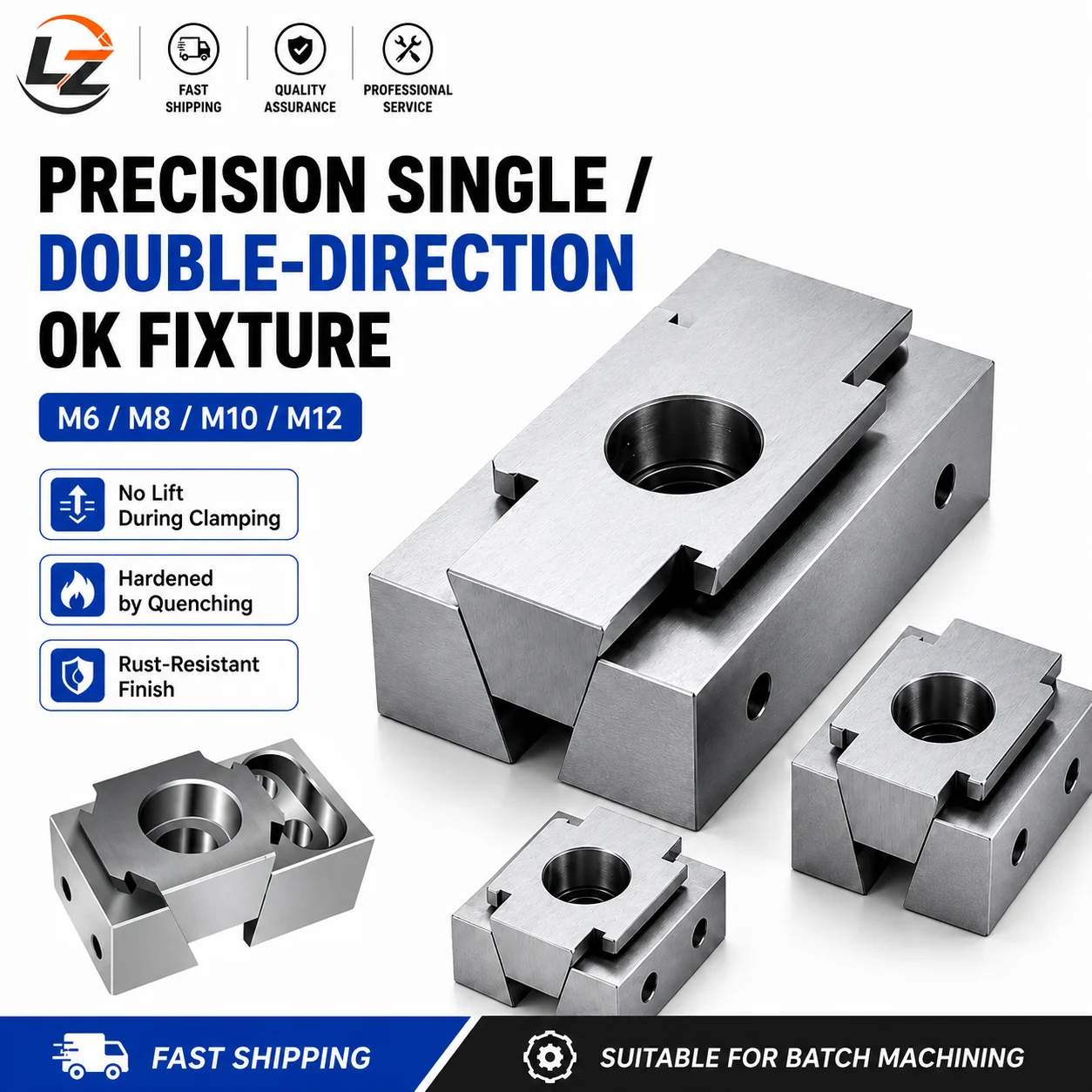

Single-Sided Double-Sided Precision OK Fixture M6 M8 M10 M12 Adjustable Multi-Station Wedge Clamping Block Components OK Fixture

  • SKU: N/A
Single-Sided Double-Sided Precision OK Fixture M6 M8 M10 M12 Adjustable Multi-Station Wedge Clamping Block Components OK Fixture
Roll over image to zoom in
Click to open expanded view

Price range: 58,99 € through 117,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Description:

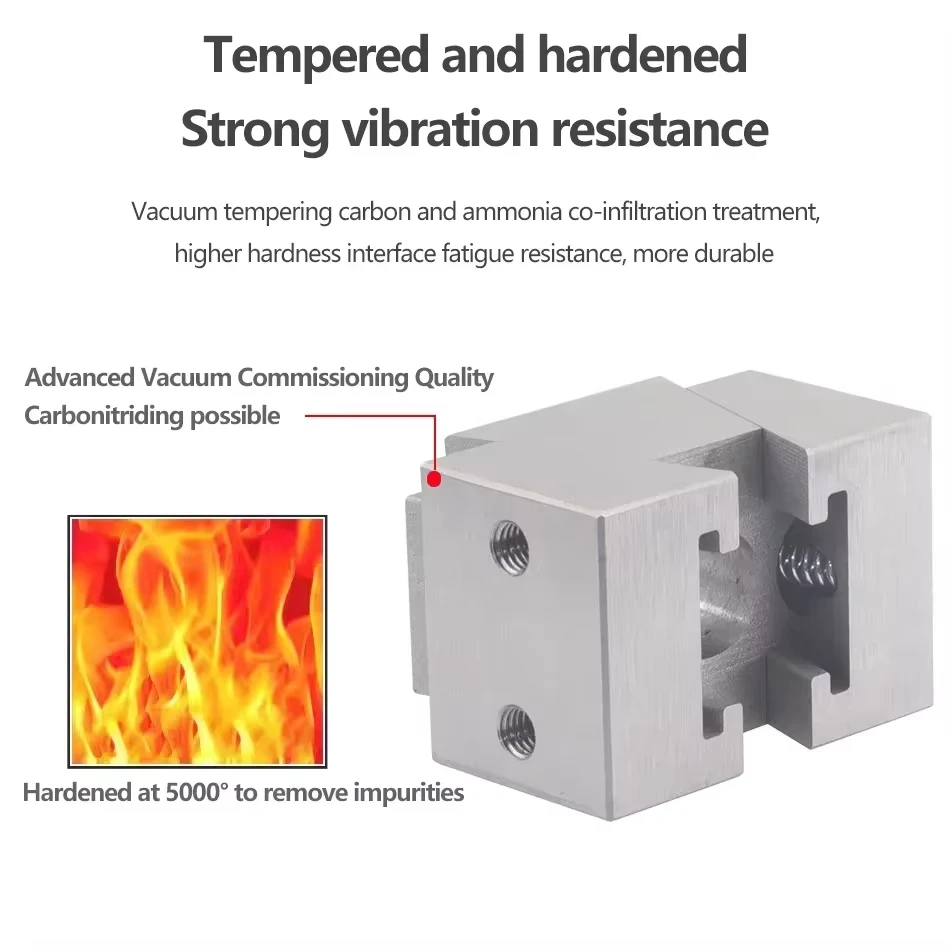

DURABLE: Made of aluminum alloy metal material,durable.

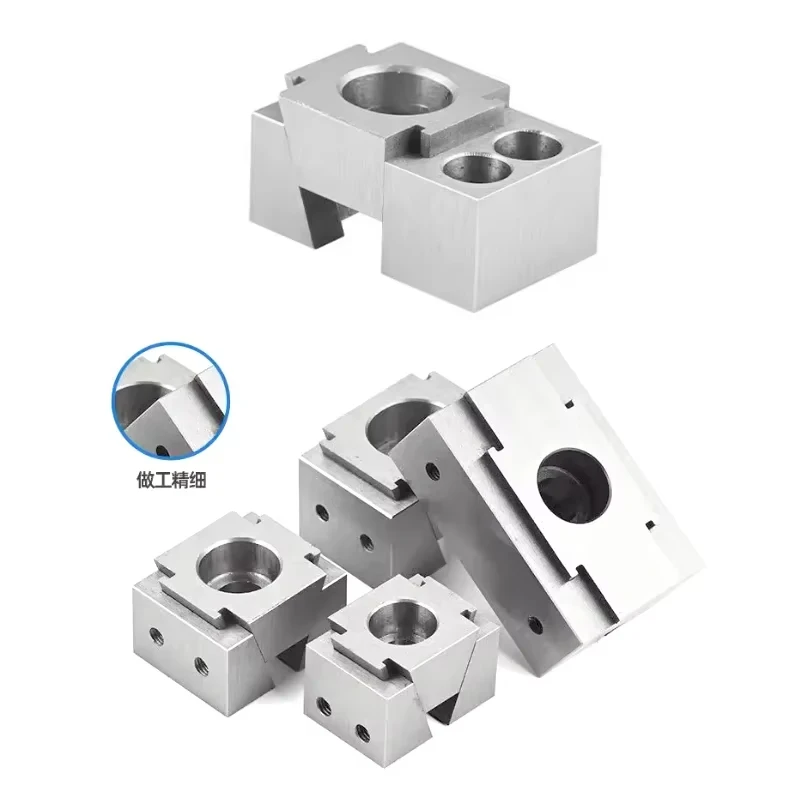

Multiple pieces can be used side by side, saving time and labor and high efficiency.

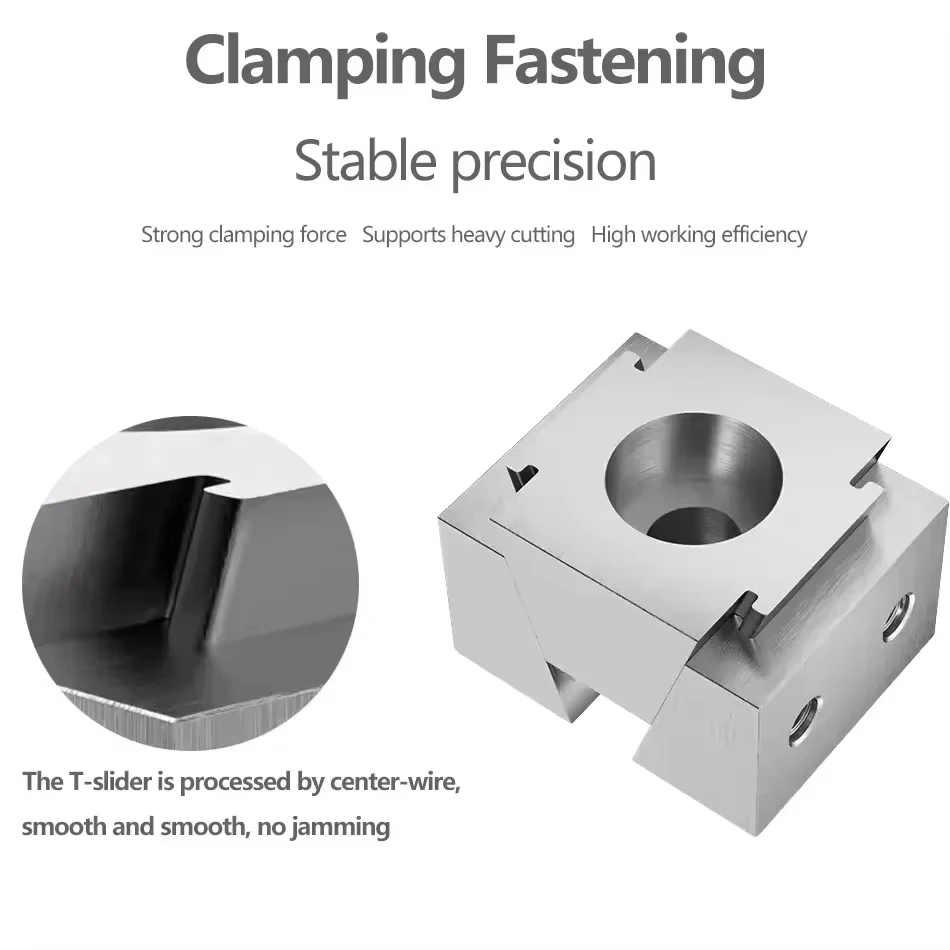

FEATURE: CNC Multi Station OK Clamp Wedge Expansion Block Machining Center Side Fixed Precision Vice.

Scope of use: steel parts, aluminum parts, quick change pallet.

The side threaded hole can be equipped with a semicircular jaw to clamp square workpieces and cylindrical workpieces.

Package Includes:

1 OK Fixture

Note:

Please allow slightly errors due to manual measurement and different monitors.

1. When A is pressed down, B. C simultaneously pushes outward in parallel to the ground, achieving the purpose of clamping the workpiece
2. When A loosens upwards, B. C moves inward and parallel to the bottom, achieving the purpose of unlocking the workpiece
Note: When A is loosened upwards, due to the built-in stainless steel spring B C will not move upwards with A, but will move inward and parallel to the bottom at the same time

Additional information

Color

M6 One-Way, M10 Two-Way, M10 One-Way, M12 One-Way, M14 Two-Way, M6 Two-Way, M8 Two-Way, M16 Two-Way, M12 Two-Way, M8 One-Way
