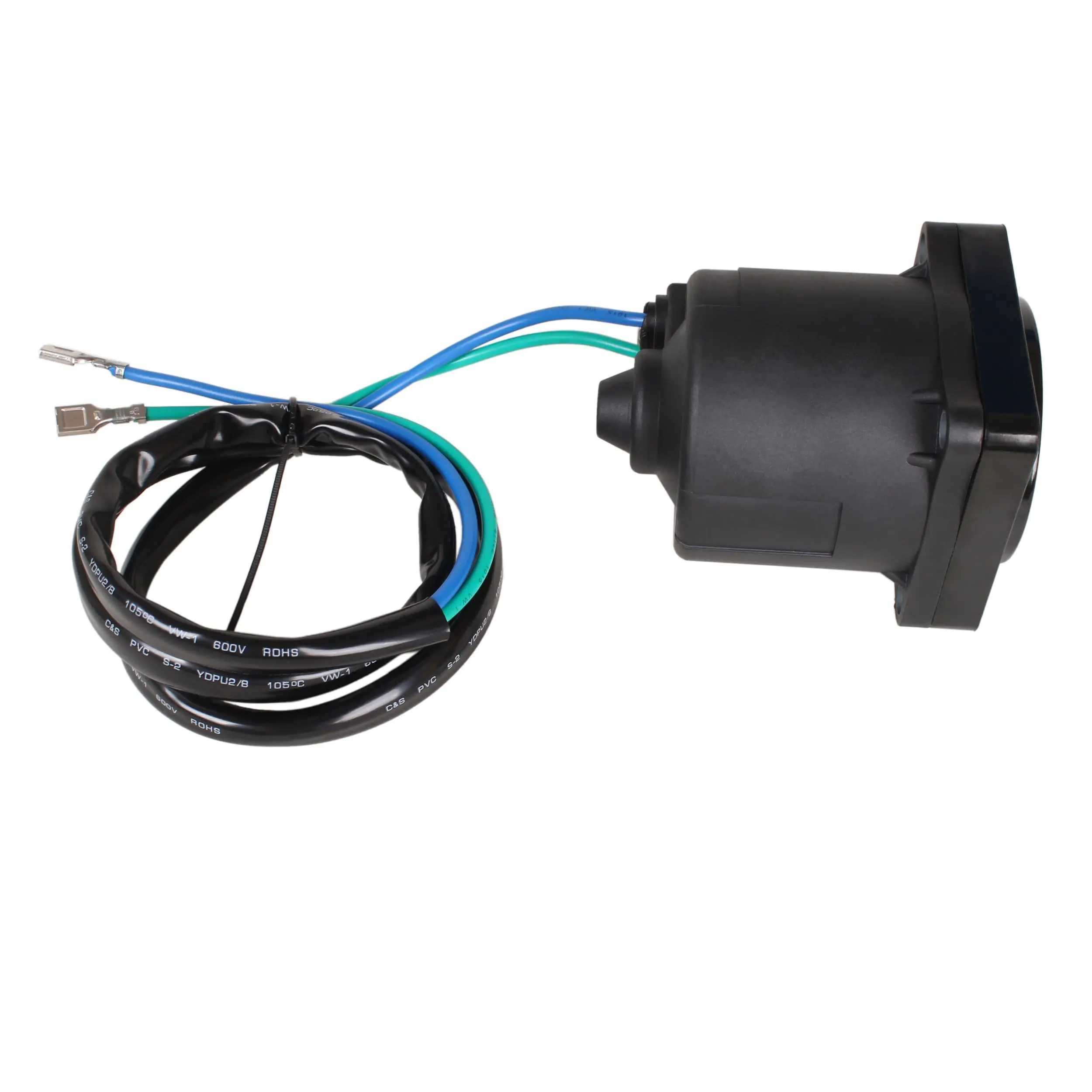

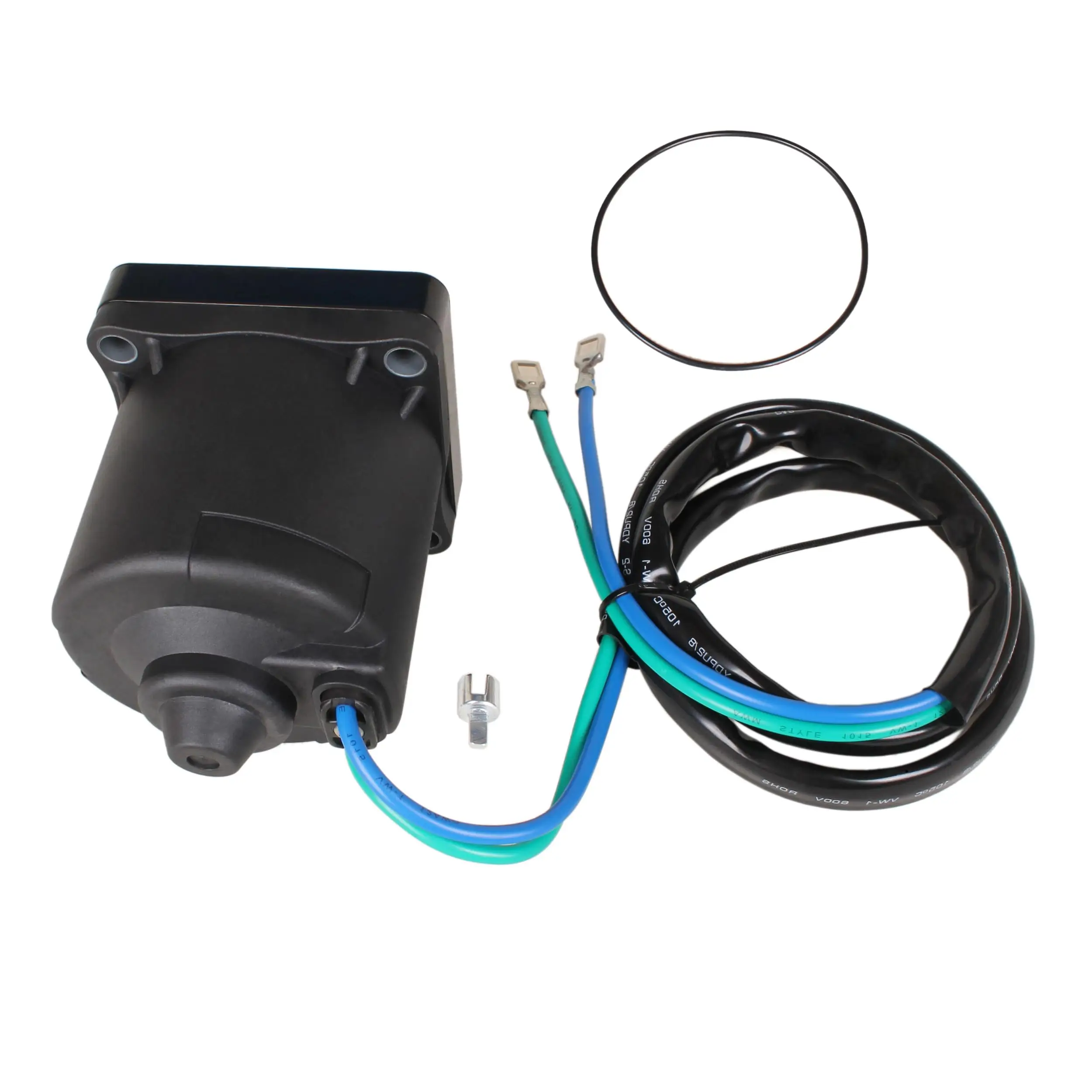

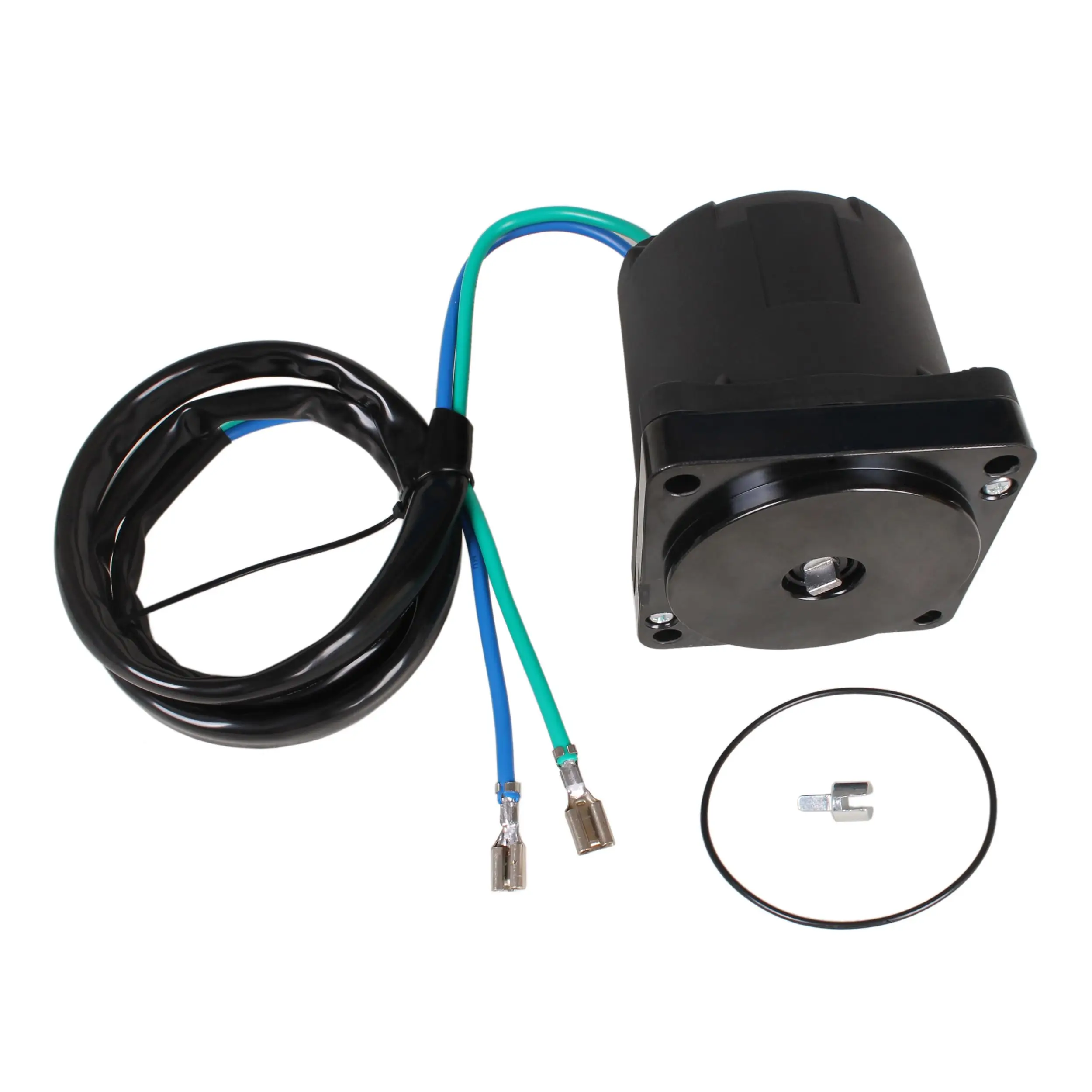

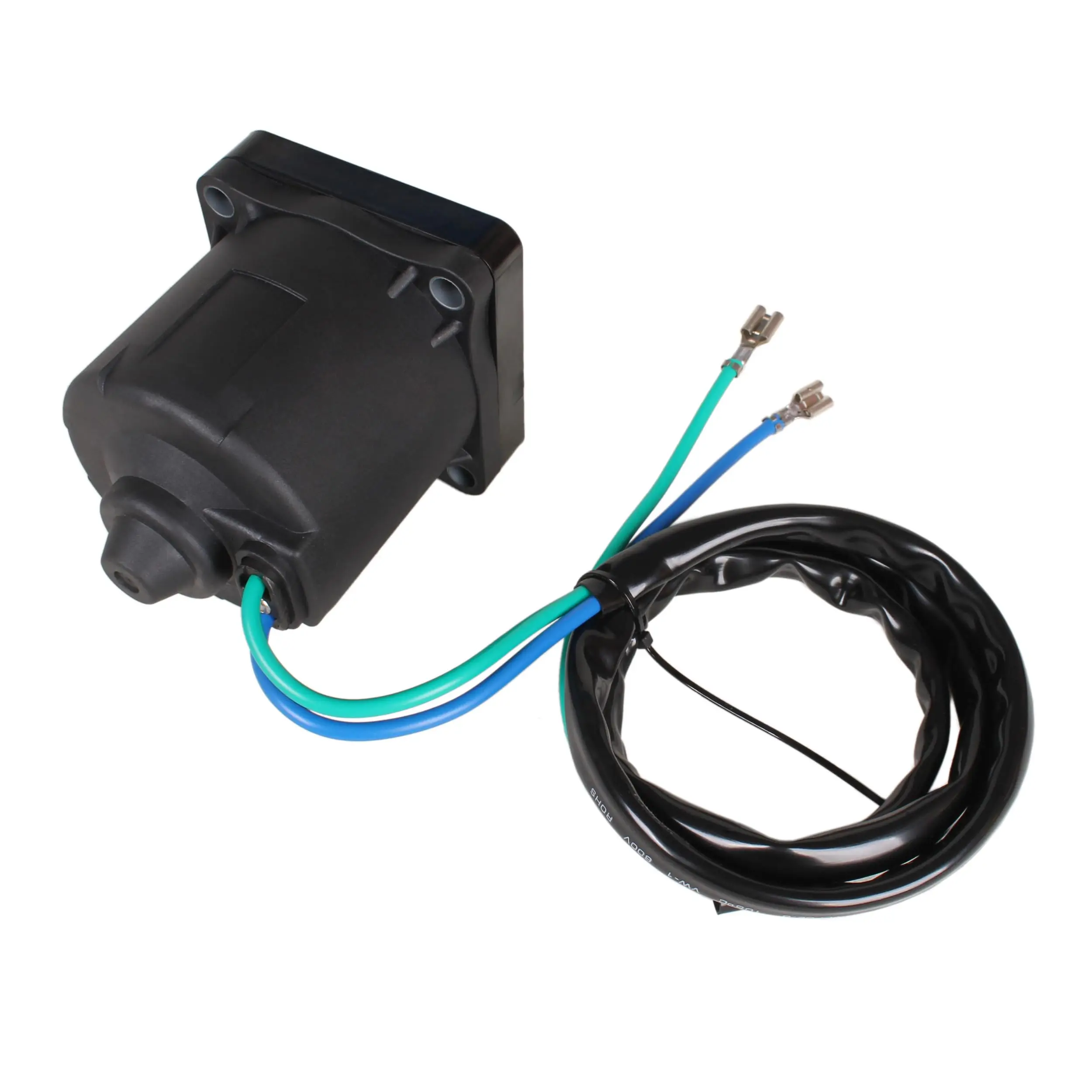

Tilt Trim Motor for Evinrude Johnson OMC BRP 75HP-225HP, Fit Sierra 18-6780, Fit ARCO 6241 TRM0039 ,0434495 0434496 0438529
Fit API Marine: PT303NM, Fit Arco Marine:
6241, Fit OMC: 434495, 434496, 438529, 438531, Fit Lester: 10816, Fit
Arrowhead: TRM0039, Fit J & N Automotive: 430-22025, Fit PIC Picture
ID 107-116, Fit Wilson 74-09-10816, fit Mallory 9-18103
fit
BRP-OMC, 60, 70, 90, 115, 150, 175 HP; 1991-Up 200, 225 HP; 1991-94
120, 140 HP; 1995-UP 50 HP 3-cyl, 60 HP, V4 130 HP; 1997-Up 115-200 HP;
1998-99 225 HP;
1991-1999 fit Evinrude Johnson OMC 50HP 60HP 70HP 90HP 115HP 120HP 130HP 140HP 150HP 175HP 200HP 225HP
Replaces
OEM Numbers: 0434495 0434496 0438529 0438531 0778266 434495 434496
438529 438531 5005374 5005376 778266 18-6780 6241 10816 TRM0039
430-22025 PT303NM

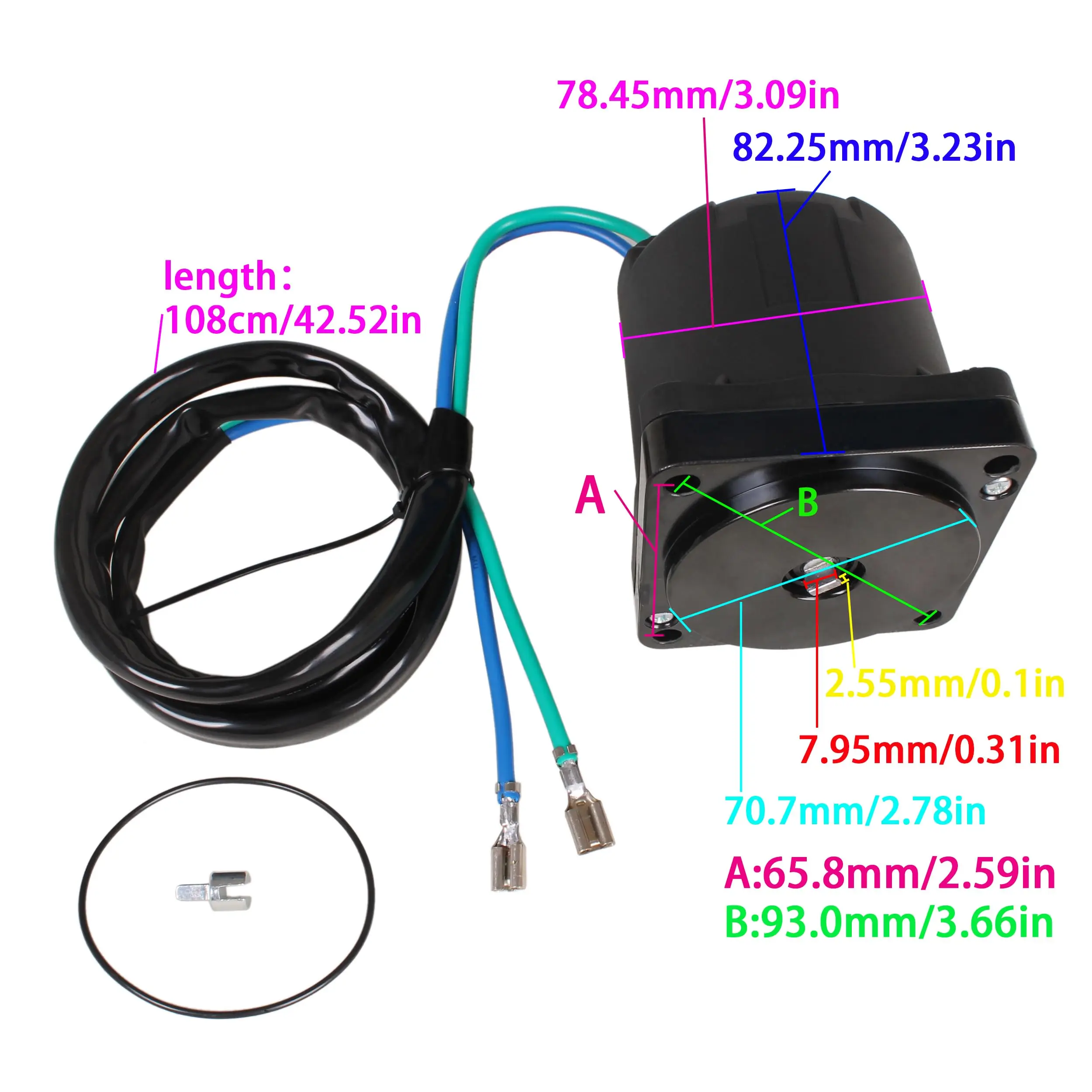

Voltage: 12V,
Rotation: Reversible, OD: 2.992in / 76mm, Shaft OD: 0.315in / 8mm,
Length: 4.055in / 103mm, Terminal 1 Size: Wire, Terminal 2 Size: Wire,
Shaft: 2.6mm Drive Tang, Current Type: DC 2-wire connection, 4-bolt
mount, Flat-blade shaft, Female Spade Terminal Ends.
Application:
This 0438529 *MOTOR & O-RING ASSY. fits Johnson & fit Evinrude & fit OMC the following models and components:
2000 115HP J115SPLSSC Power Trim And Tilt Hydraulic Assembly
2000 115HP RJ115VXSSS Power Trim And Tilt Hydraulic Assembly
2000 115HP BJ115VXSSS Power Trim And Tilt Hydraulic Assembly
2000 175HP BJ175PXSSC Power Trim/Tilt Hydraulic
2000 175HP BJ175VXSSS Power Trim/Tilt Hydraulic
115 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
120 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
130 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
140 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
150 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
175 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
200 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
225 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
50 H.P. 3 Cyl. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
60 H.P. V4 1991-1999 All OMC, 2-Wire, Fast Track, short harness
70 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
90 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
115 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
120 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
130 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
140 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
150 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
175 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
200 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
225 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
50 H.P. 3 Cyl. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
60 H.P. V4 1991-1999 All OMC, 2-Wire, Fast Track, short harness
70 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
90 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
115 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
120 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
130 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
140 H.P. 1991-1994 All OMC, 2-Wire, Fast Track, short harness
150 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
175 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
200 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
225 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
50 H.P. 3 Cyl. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
60 H.P. V4 1991-1999 All OMC, 2-Wire, Fast Track, short harness
70 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
90 H.P. 1991-1999 All OMC, 2-Wire, Fast Track, short harness
