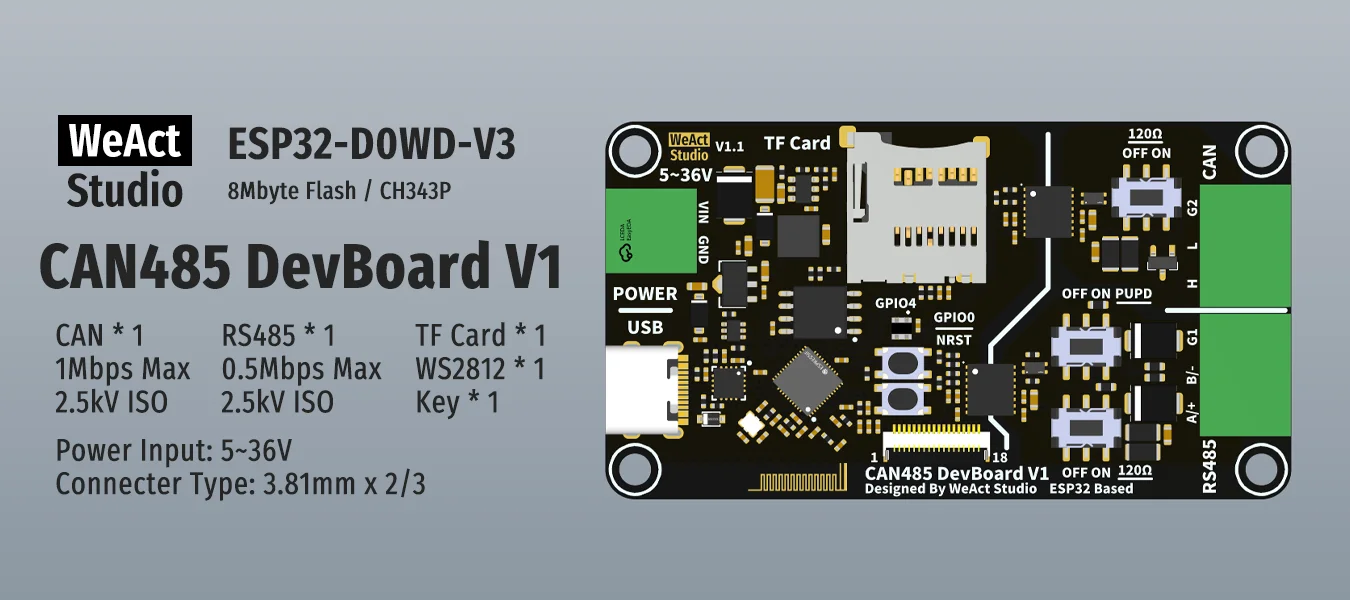

Weact CAN485 Devboard ESP32 CH343P CAN RS485 Entwicklungsboard 5-36V 2,5Kv Isolation 1Mbps CAN 0,5Mbps RS485

  • SKU: N/A
Weact CAN485 Devboard ESP32 CH343P CAN RS485 Entwicklungsboard 5-36V 2,5Kv Isolation 1Mbps CAN 0,5Mbps RS485
Roll over image to zoom in
Click to open expanded view

Price range: 55,99 € through 57,99 €

Sold By: MostiOne Team
Clear
SKU: N/A Category:

Datenverbindung

https://github.com/WeActStudio/WeActStudio.CAN485DevBoardV1_ESP32

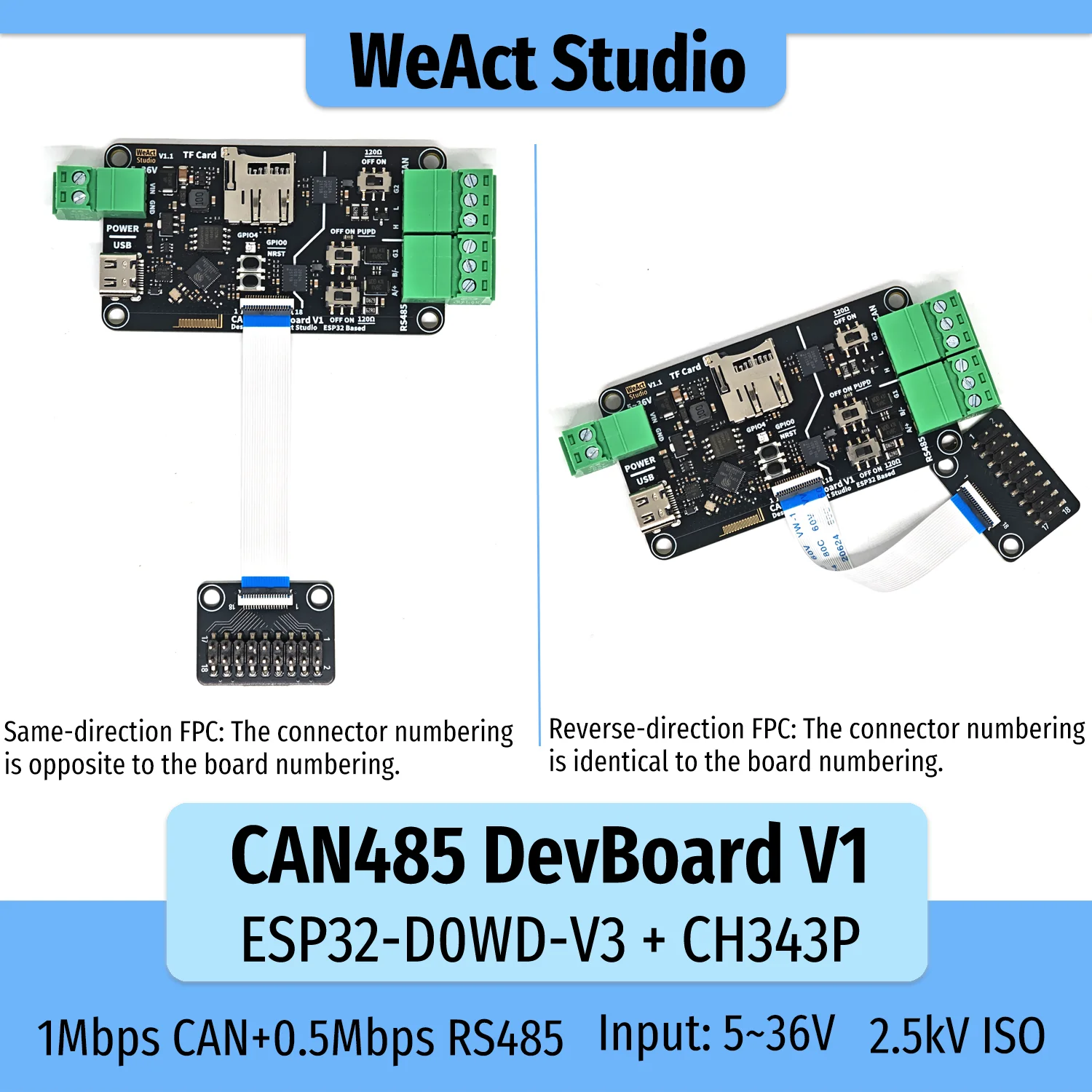

FPC-18Pin-0.5mm Stecker (Hardwareversion >= V1.1)

“PIN1”: GND,
“PIN2”: 3.3V,
“PIN3”: GPIO37,
“PIN4”: GPIO38,
“PIN5”: GPIO39,
“PIN6”: GPIO34,
“PIN7”: GPIO35,
“PIN8”: GPIO32,
“PIN9”: GPIO33,
“PIN10”: GPIO25,
“PIN11”: GPIO12,
“PIN12”: GPIO5,
“PIN13”: GPIO23,
“PIN14”: GPIO19,
“PIN15”: GPIO16,
“PIN16”: GPIO18,
“PIN17”: 5V,
“PIN18”: GND

Additional information

Farbe

Esp32 Can485 Fpc, Esp32 Can485
