Wisecoco 7 Inch OLED AMOLED 1920X1080 High Bright 900 Nits IPS Touch Screen Handheld Game Console Display for Raspberry Pi 165Hz

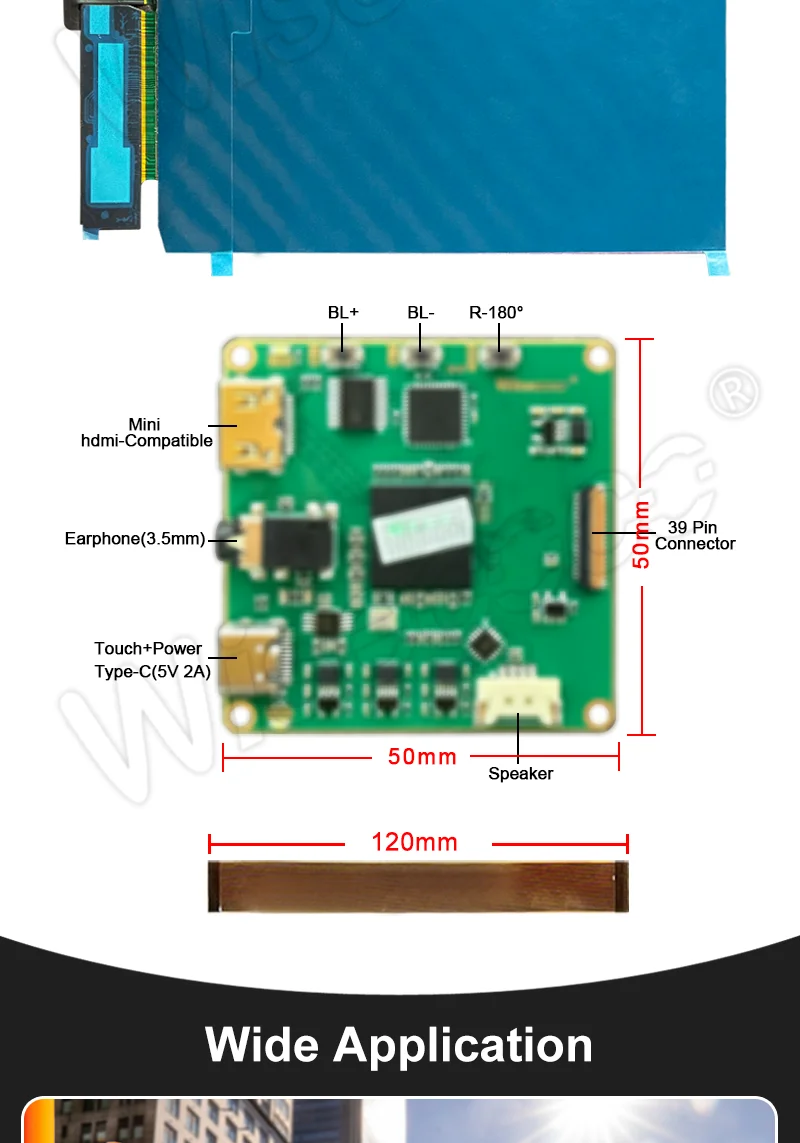

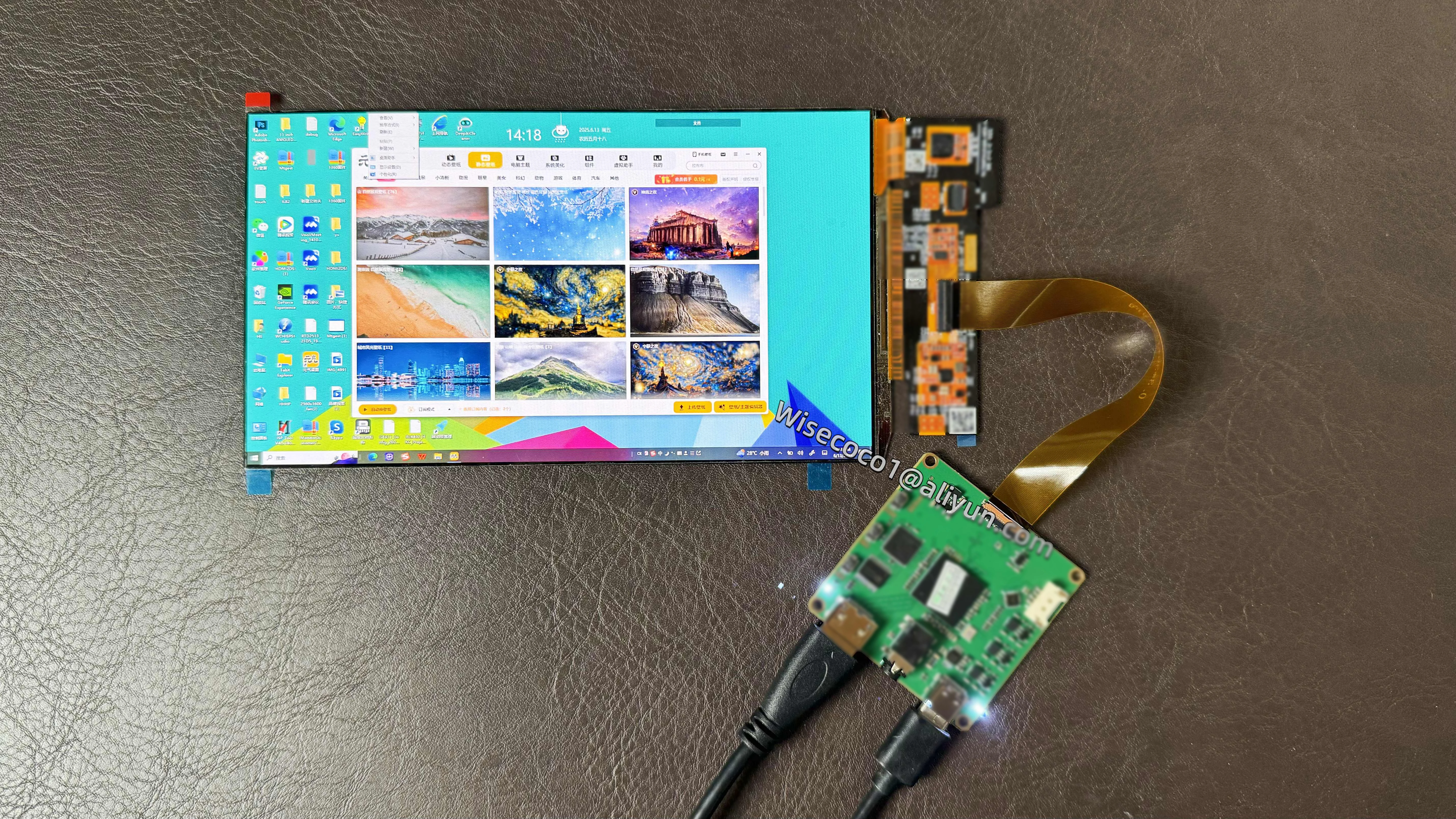

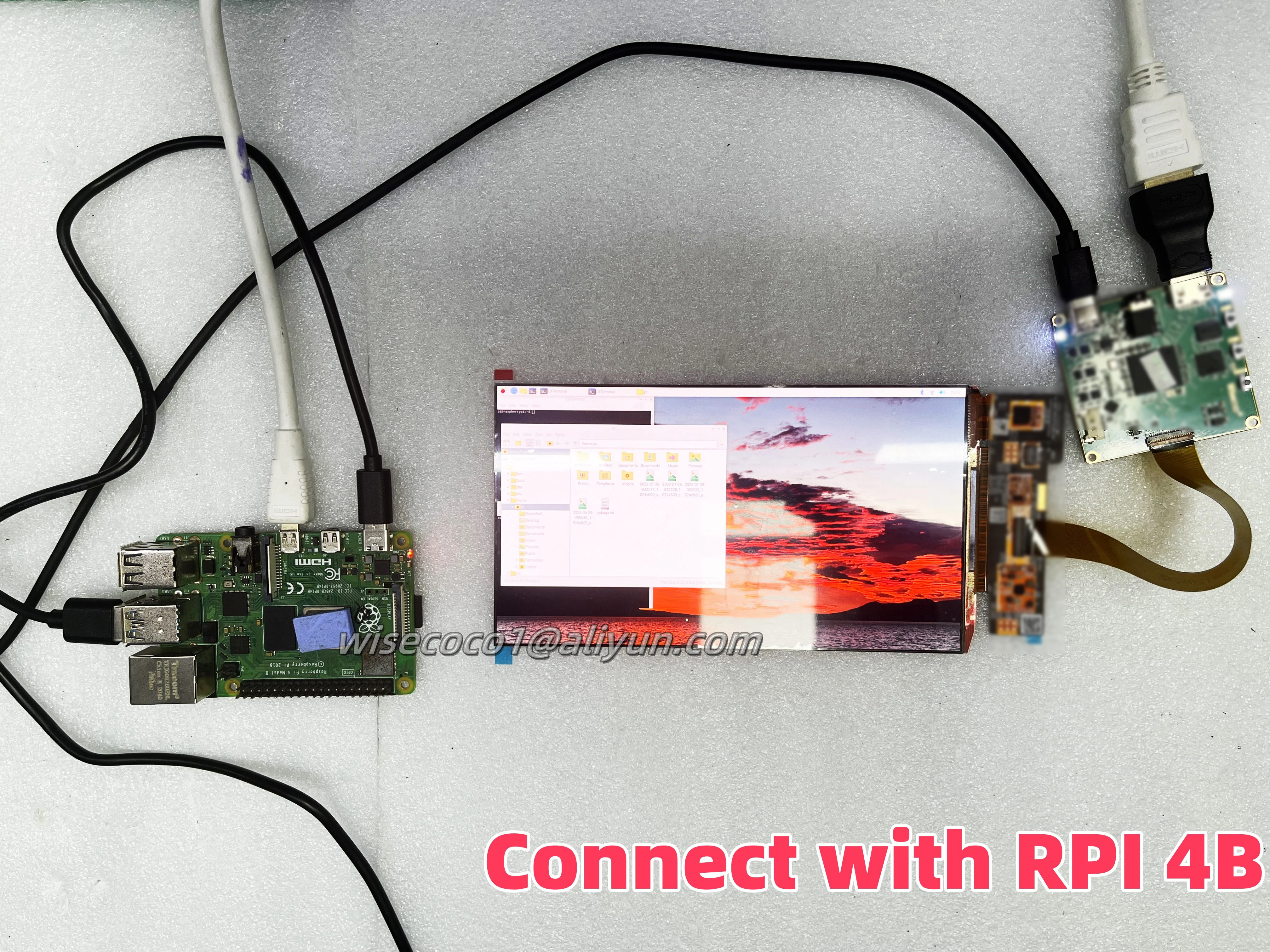

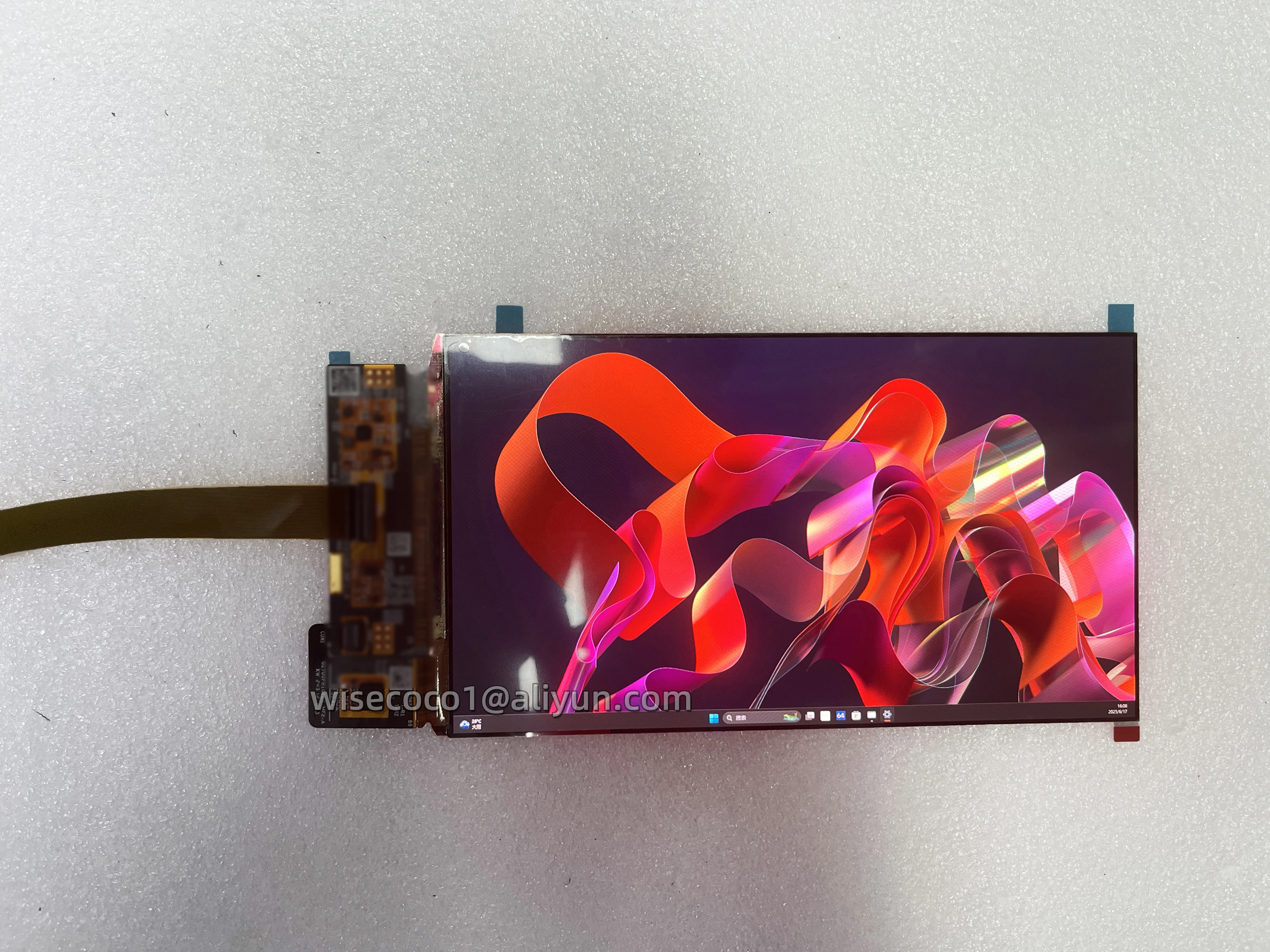

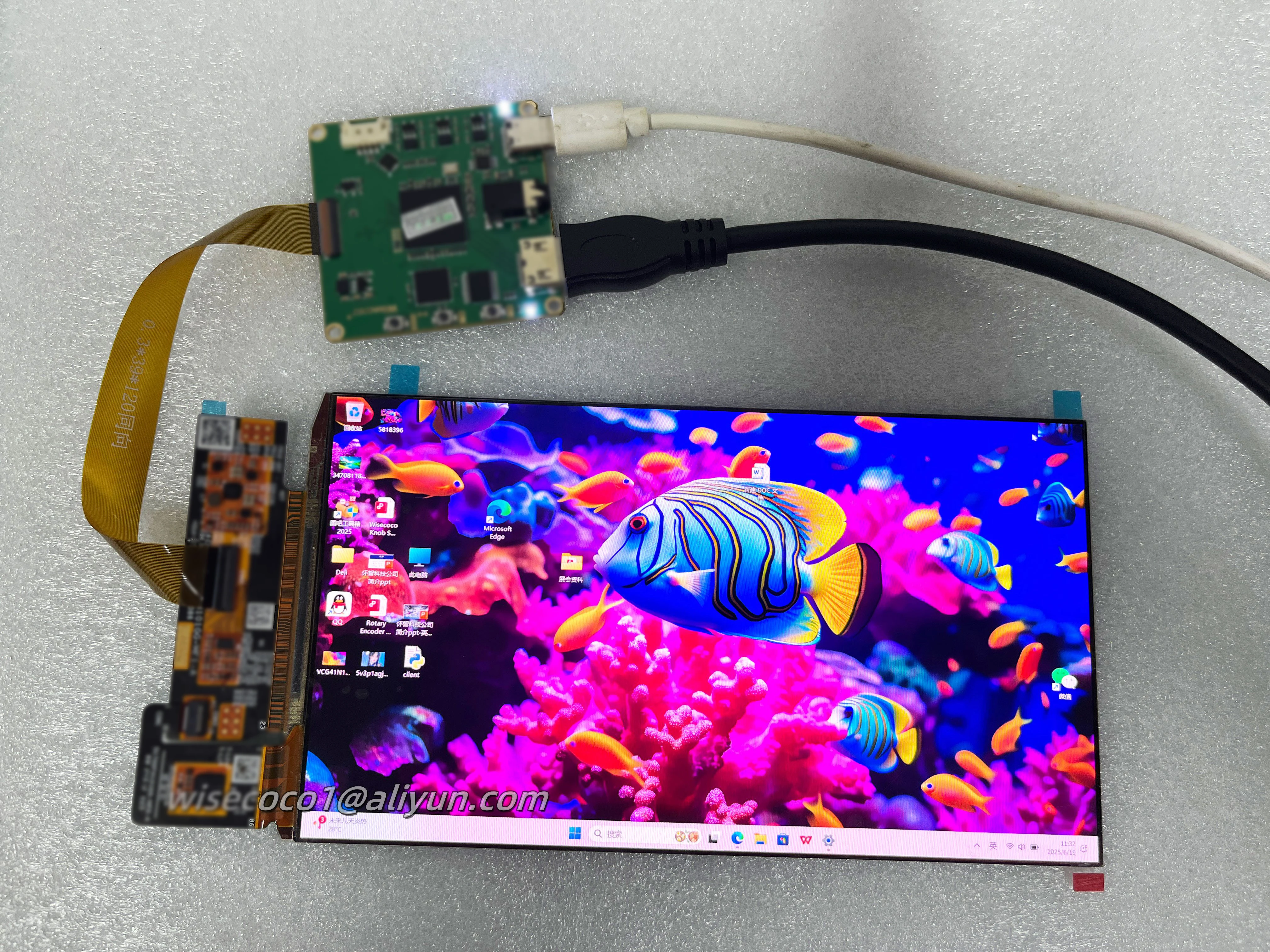

This is a 7-inch AMOLED display kit with HDM-I input and on-cell touch. With 1920×1080 FHD resolution, 10-bit color depth (1.07 billion colors), and smooth 90Hz refresh rate, this screen delivers vibrant visuals and reliable performance. The included driver board makes it easy to plug and play, perfect for Game Console,Raspberry Pi, mini-PCs, industrial monitors, and custom projects.

Product Features： kindly contact us for complete datasheet if needed.

Display color：1.07 billion colors (RGB x 10bits)

Frame rate： AMOLED Panel max refresh rate: 165Hz. Default driver board supports up to 90Hz refresh rate

Display format：7” FHD (1920×1080), landcape mode by default.

Pixel Configuration：V-style4

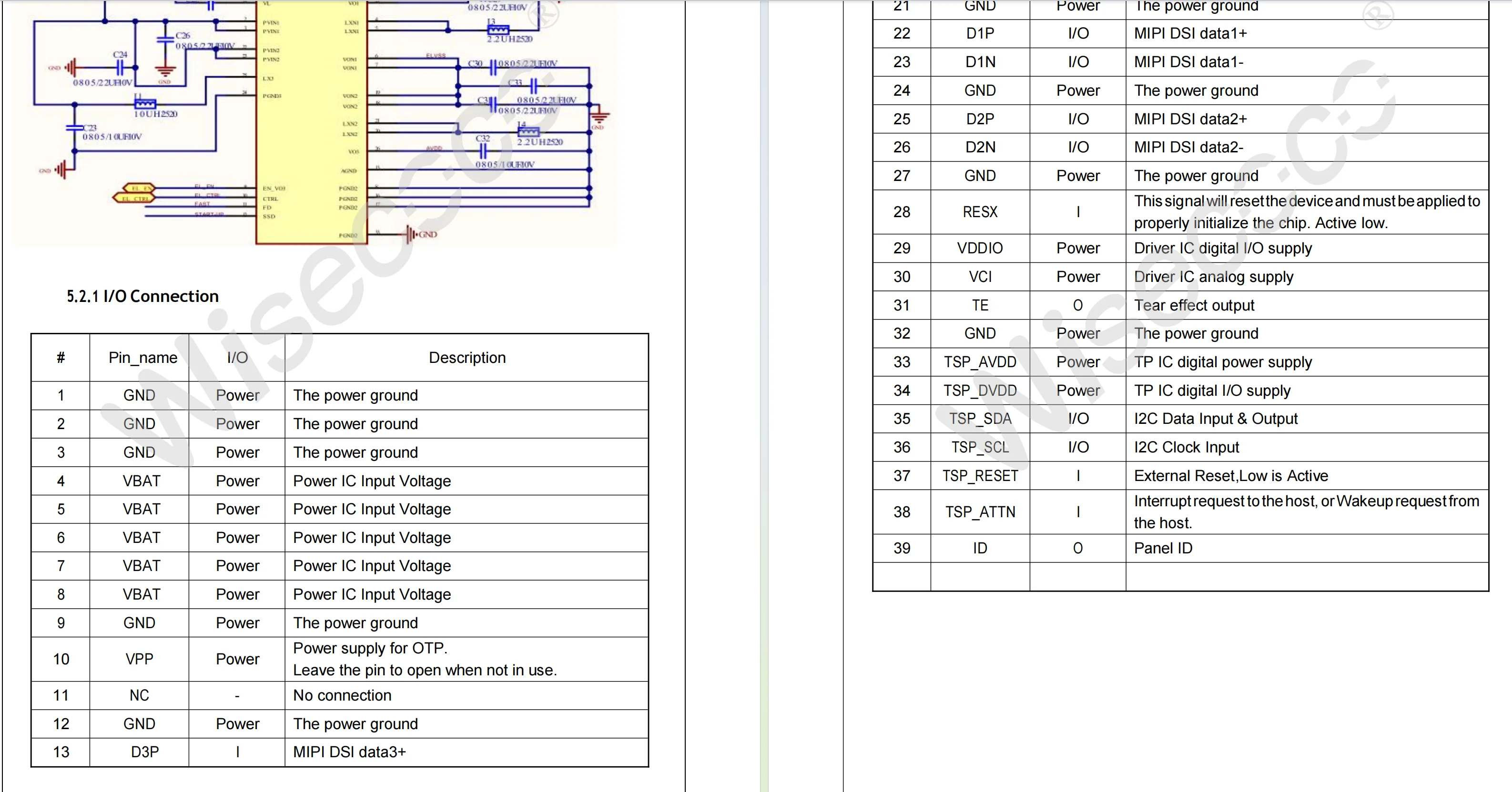

Interface：MIPI 4 lanes

Driver IC: SH8804B

Touch IC: FT3519T

Touch screen：On-Cell capacitive touch panel (when conect with game consoles, some devices may not suppot touch function)

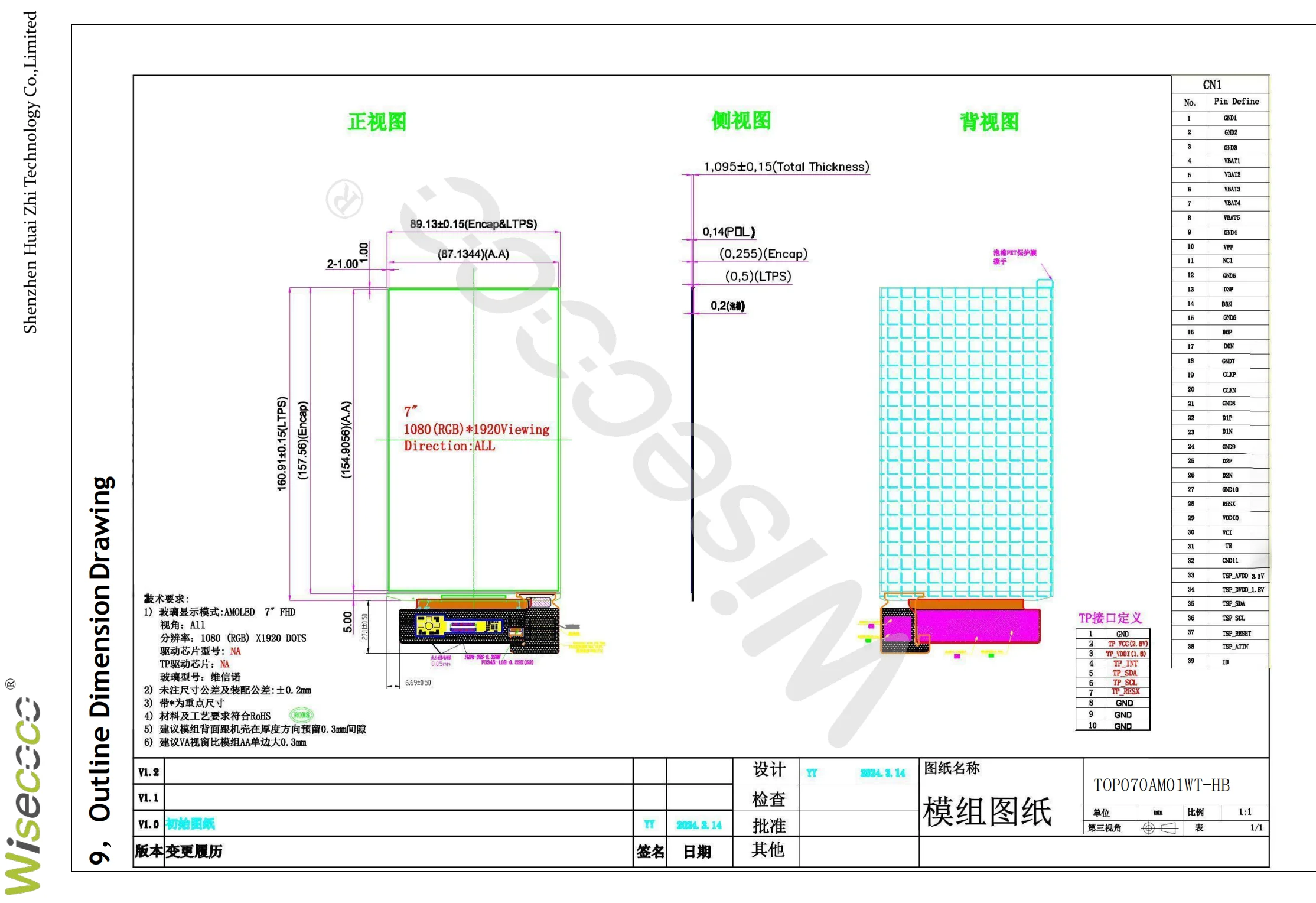

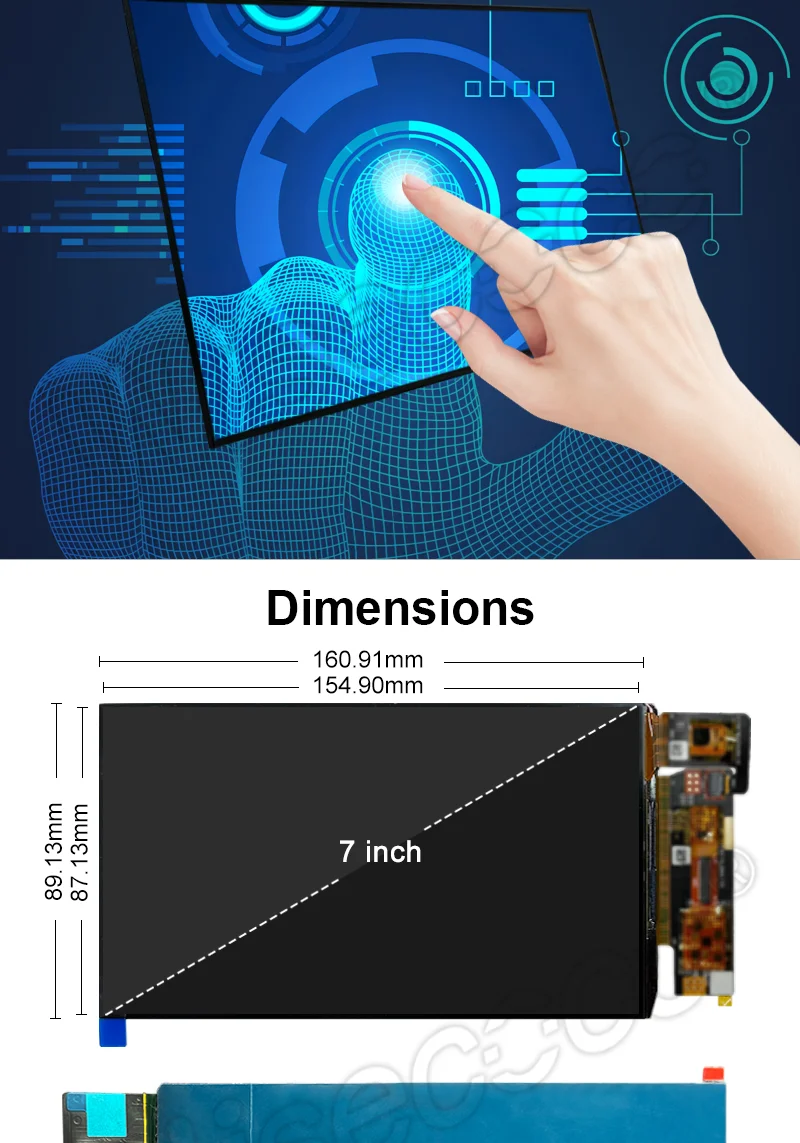

Outline: 89.1344×160.9056×1.095 mm

Active area: 87.1344 (H) x 154.9056 (V) mm

Resolution: 1920×1080 ( Rendering ) dots

PPI: 315

View angle: 80/80/80/80

Contrast ratio: 100000：1

NTSC: 100%

Luminance: 850~900nits

operating temperature: -20°C~70°C

Storage temperature: -30°C~80°C
