YIZHAN 4K Digital Microscope Camera for Soldering, HDMI USB Industrial Microscope Camera 1/1.8′ IMX678 Sensor, C-Mount Cs-Mount

✨4K 48MP SONY IMX678 Ultra HD Camera Usage Effect Reference

🔥After assembling the microscope, the first step is to prioritize using the auto-exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment. (Don’t forget to turn on the LED light.)

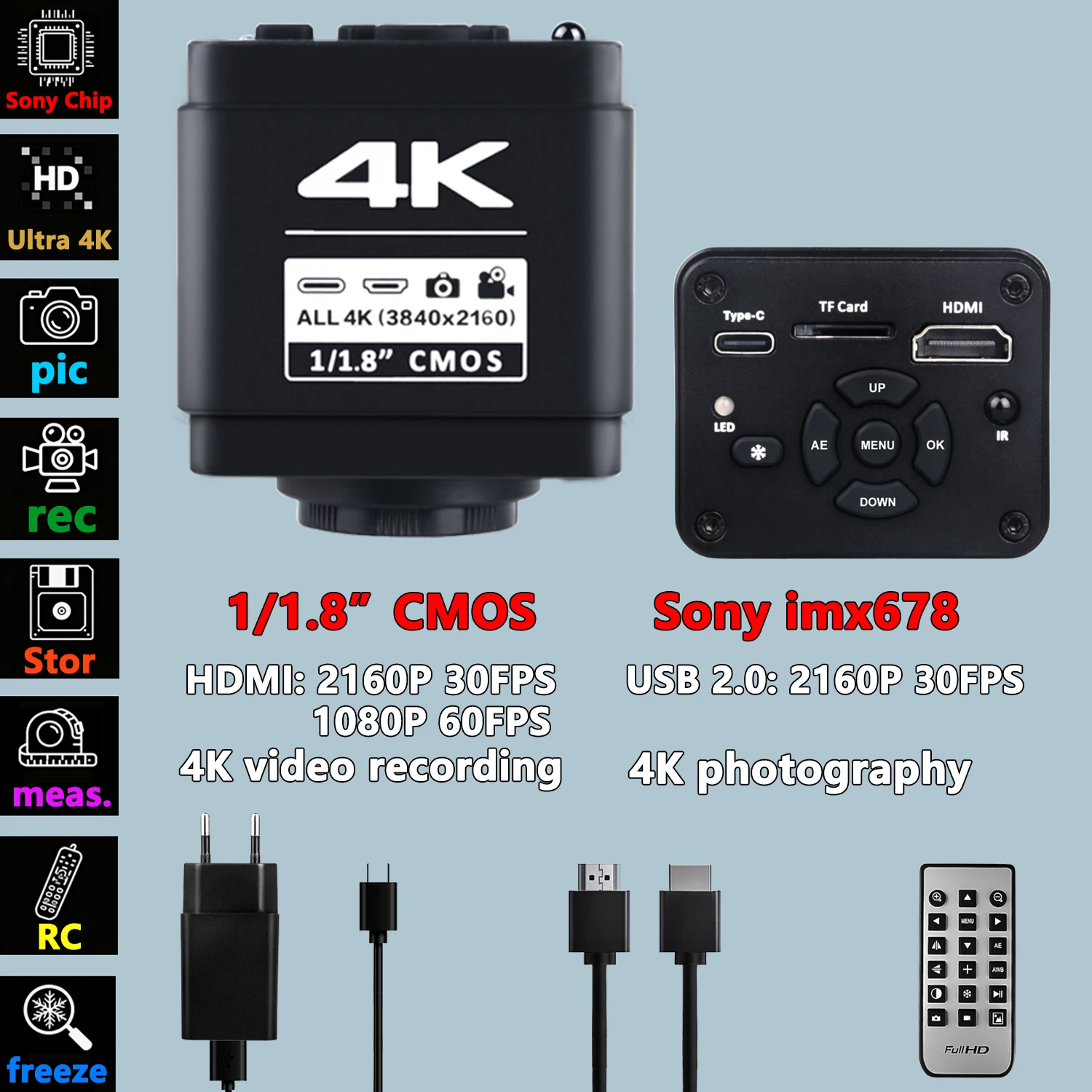

✨4K 48MP SONY IMX678 Ultra HD Camera

◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

✨Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

✨Effect of Exposure Adjustment on the Image

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

✨Function of White Balance

Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

✨4K 60MP GC8613 Ultra HD Camera

◆ Chip: GC8613
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

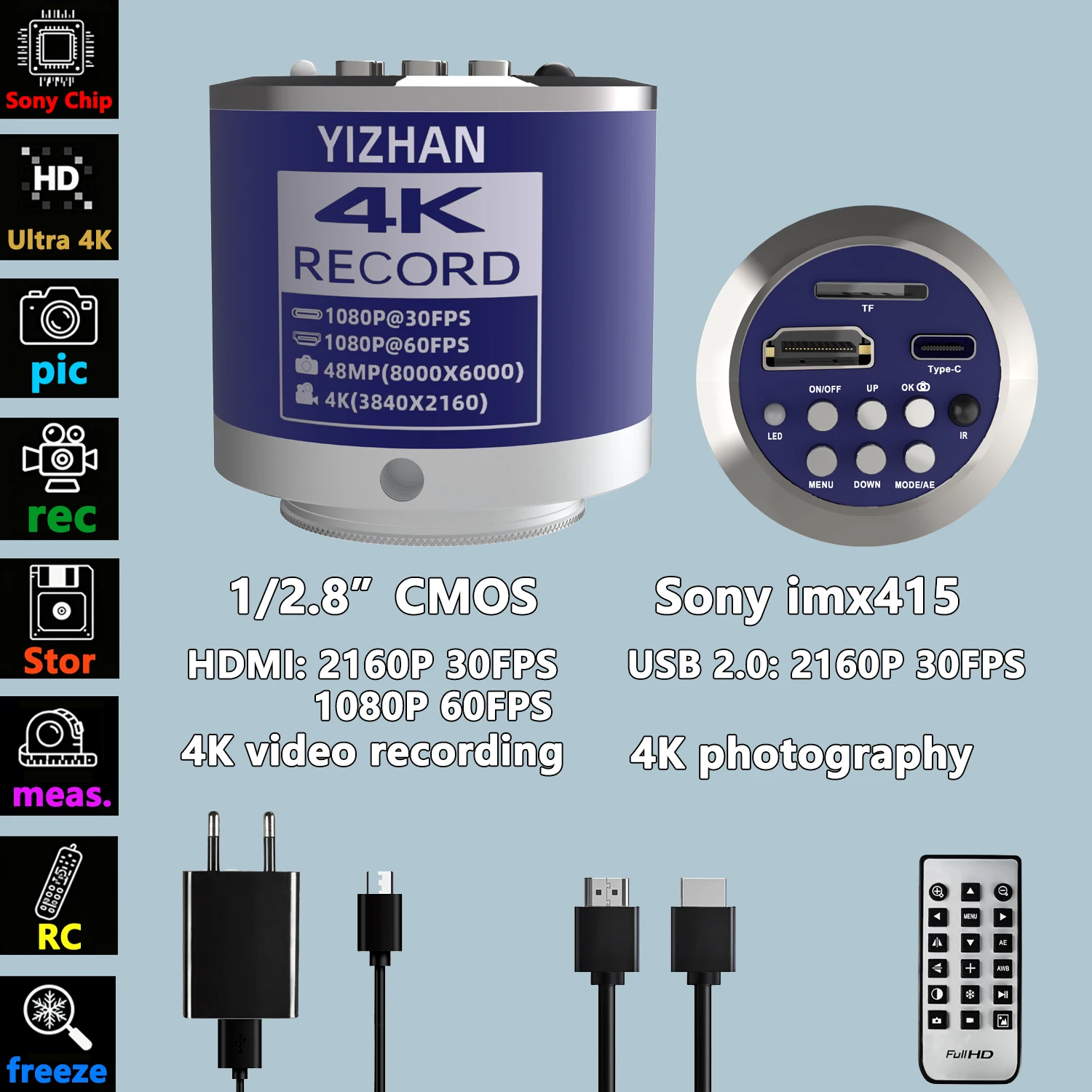

✨4K 48MP SONY IMX415 Ultra HD Camera

◆ Using 8.29 million pixel Sony CMOS image sensor;
◆ Using 1/2.8 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ One click freezing/thawing function;
◆ Electronic scaling function;
◆ Support manual/automatic exposure, adjust exposure compensation values;
◆ Support manual/automatic white balance, adjustable in red, green, and blue;
◆ Provide 16 line drawing functions, with adjustable line colors, thickness, and positions;
◆ Provide center crosshair display/close;
◆ Supports TF card storage, with a maximum support of 64GB;
◆ Support remote control operation, taking photos without shaking and clearer images;
◆ Support Chinese and English menu languages (default English);
◆ Support saving shutdown settings parameters;
◆ sturdy metal casing;

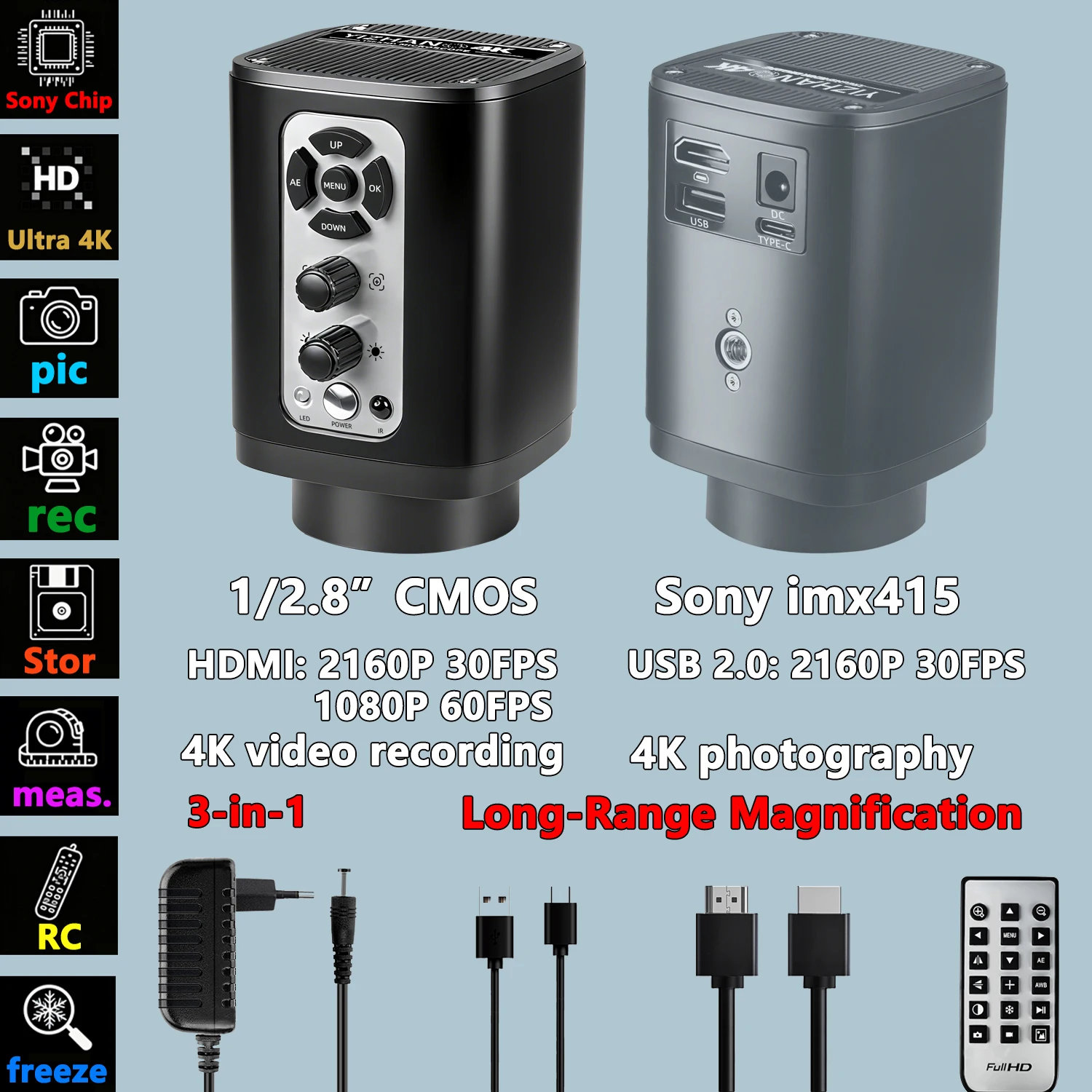

✨3-in-1 4K 48MP SONY IMX415 Ultra HD Camera

◆ Chip Type: Sony IMX415
◆ Magnification: 160X
◆ Systems Supported by the Software: Windows 7, Windows 10, Windows 11, macOS
◆ Standard Working Distance: Approximately 50cm
◆ Adopting 8.29 million pixel Sony CMOS image sensor;
◆ Adopting a 1/2.8 inch image sensor;
◆ HDMI 3840 * 2160 30 frame/1080P 60 frame image output;
◆ USB 2.0 connection to computer driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography;
◆ One click freeze/thaw function/same screen comparison;
◆ Remote focusing without shaking;
◆ Electronic zoom function;
◆ Supports manual/automatic exposure and exposure compensation value adjustment;
◆ Supports manual/automatic white balance, with adjustable red, green, and blue colors;
◆ Supports USB storage, with a maximum capacity of 64GB;
◆ Support remote control operation, taking photos without shaking, resulting in clearer images;
◆ Supports 8 menu languages (default English);
◆ Integrated design, built-in camera, light source, and microscope lens
◆ Support saving shutdown settings parameters;

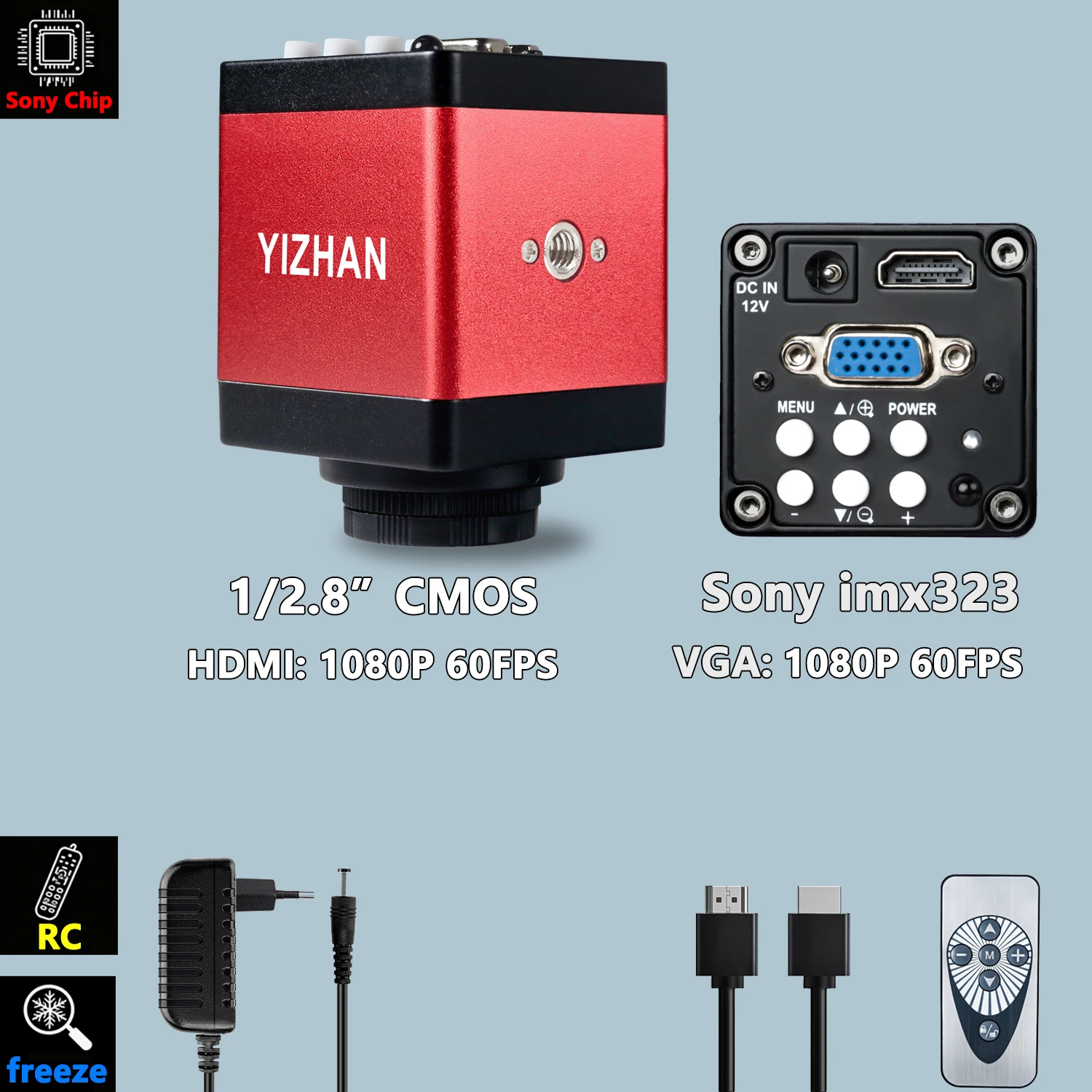

✨13MP SONY IMX323 HD Camera

Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3″
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English, Chinese, Spanish, Portuguese, Russian, French, German, Japanese, Korean, etc.
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P
