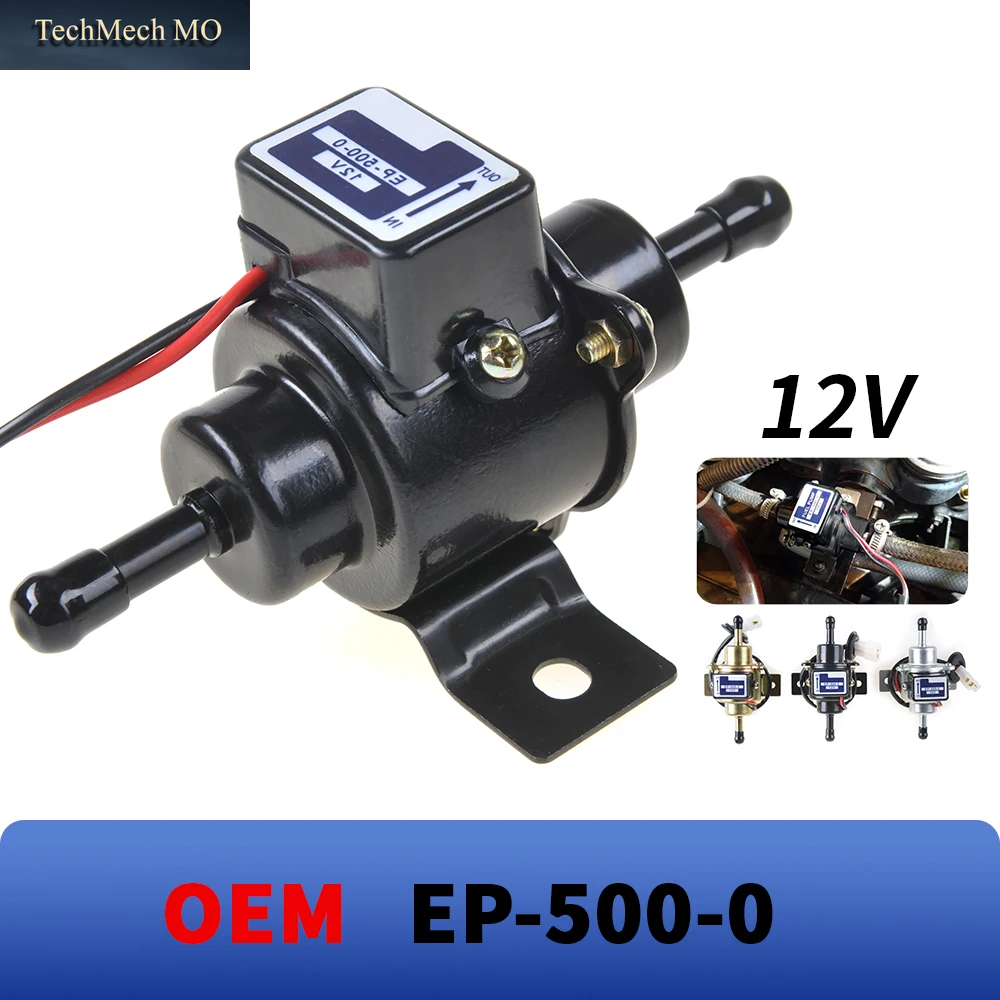

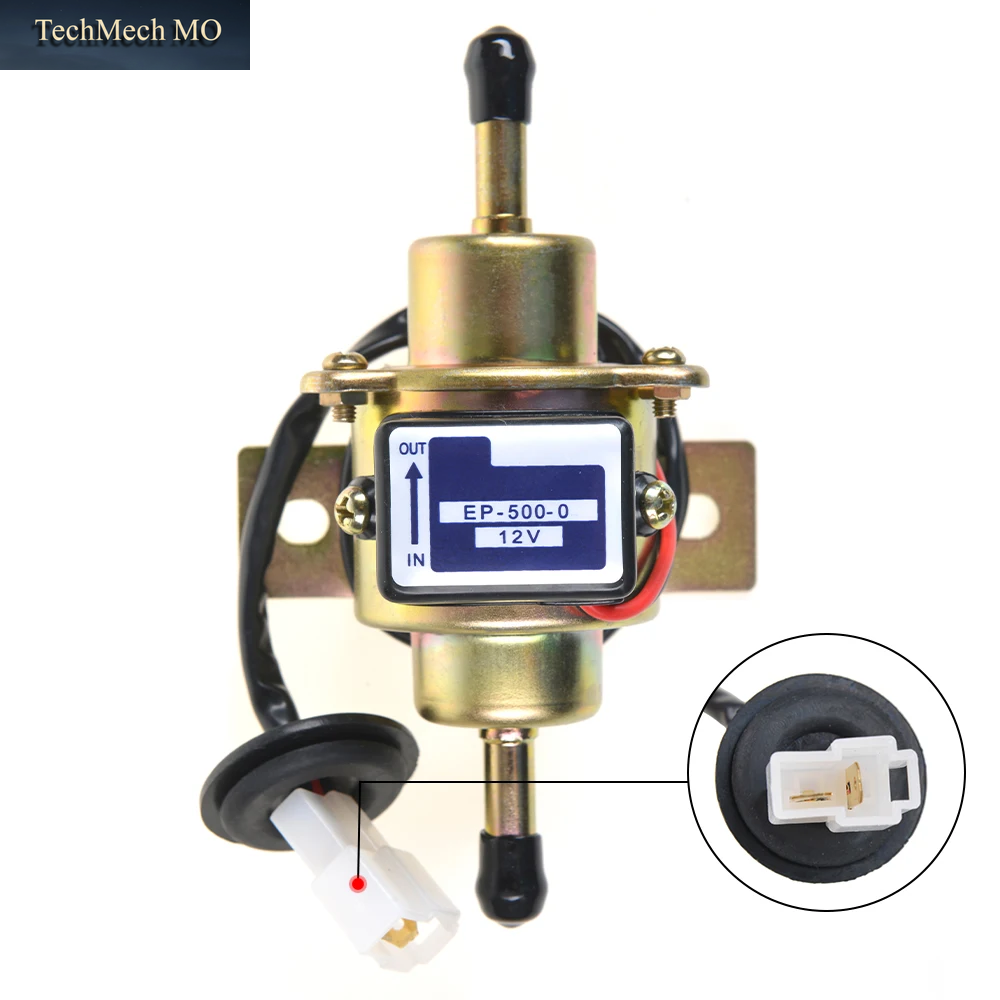

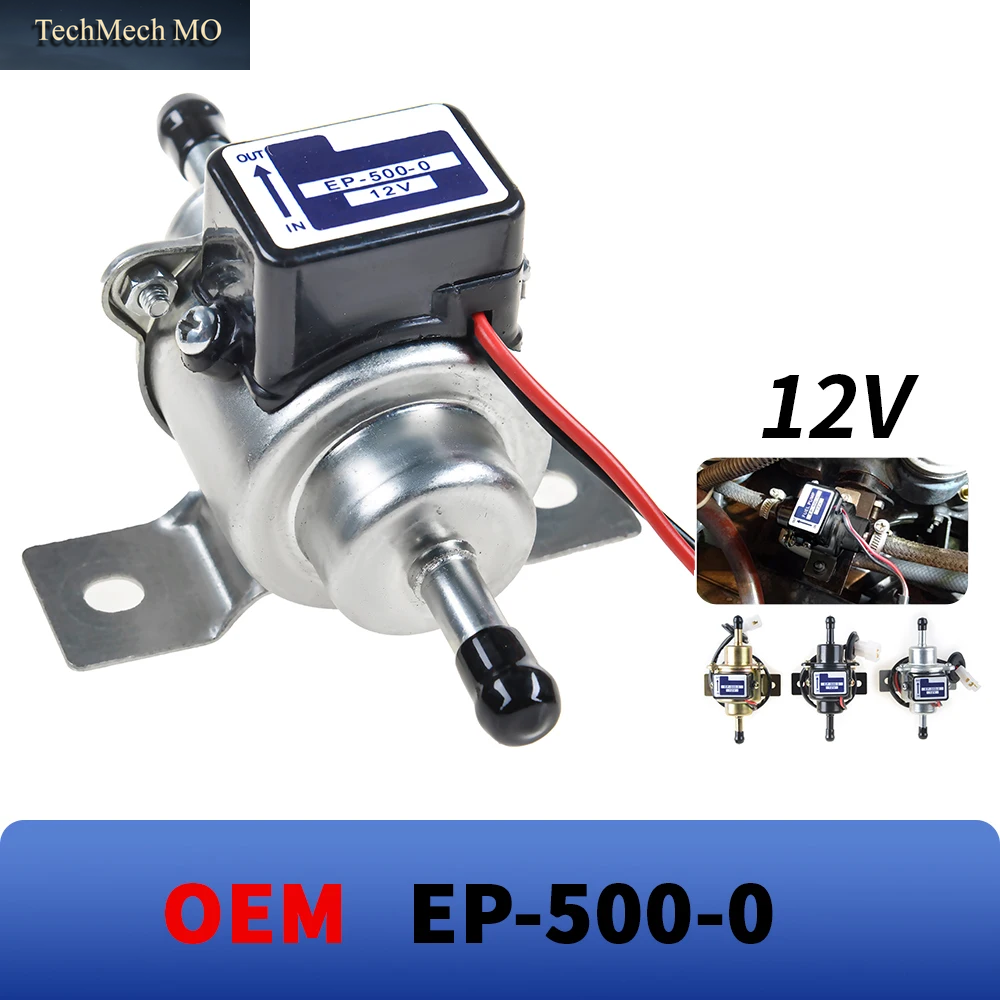

12V Universal Gas/Diesel Electric Fuel Pump EP500 Series (035000-0460) for Car Motorcycle Oil Pipe & Diesel Systems

12V Universal Electric Car Fuel Pump Diesel Petrol Gasoline EP-500-0 035000-0460 12585-52030 1258552031 FP-1010-G Three Color

Application:

Compatible with the following part Numbers:

Features and Benefits:

Dimensions& Material:

• Pressure:3-5PSI

• Current:1.0-1.3A

• Output Pressure:0.005Pa

• Voltage:12V

• Flow:0-30 GPH / 75 – 110 LPH
• Fitting Size:1/4″ tubing
• Made of high Brass and metal
• Color: Gold/Silver/Black

Package Included:

• 1 x 12V Electronic Fuel Pump. (100% Brand New Never Used Or Installed)

Installation Instructions:
1.Disconnect the battery. uninstall the mechanical fuel pump(it’s up to you).
2.Select an area close to the existing fuel lines close to the fuel tank mount the pump.
3. Connect the fuel line from the tank to the fuel filter and the filter to the inlet port of the pump.
4. Connect the carburetor delivery line to the outlet port of the pump.
5. Connect the power lead from the fuel pump to the (P) terminal of the oil switch.
6. Connect a lead to the (I) terminal of the oil switch to the open 12-volt power source controlled by the ignition switch
7. Connect a lead from the normally closed starting system to the (S) terminal of the oil switch.
8. Start the engine to check if it works or leaks.

Note:

• Supposed to have an oil pressure safely switch to ensure running safely.

• Avoid routing fuel lines in areas that would cause chafing.

• All items are Brand New unless stated otherwise on the listing.We sell DIY (Do It Yourself) Items with a few exceptions.We take no responsibility in teaching you how to install.Professioal installation is strongly recommended.
